Hitachi Chromaster HPLC System

The Chromaster analytical HPLC system with ultra-low dwell volume for unparalleled method versatility

Overview

Hitachi Chromaster: HPLC for Today and Tomorrow

The Chromaster HPLC system from Hitachi has established new limits in Performance, Ease of Use, and Robustness. Innovative low-pressure gradient mode, "High Frequent Mode," and Hitachi's proprietary real-time feedback control system greatly suppress liquid pulsation resulting in unparalleled retention time and gradient reproducibility. Additionally, the Chromaster design incorporates an extremely low dwell volume affording the ability to accommodate and transfer methods from a variety of conventional HPLC platforms.

Continued improvements in performance, functionality, and reliability, make Chromaster the perfect HPLC system for any laboratory.

Features

Chromaster New Features and Improvements:

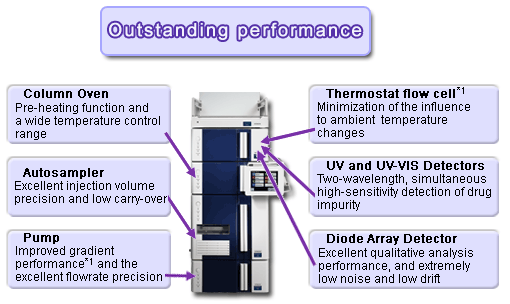

1. System Performance

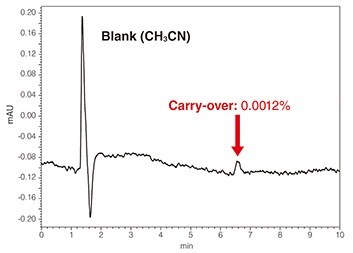

Innovative, low-pressure gradient mode yields improved peak/gradient retention time. Autosampler adopts a new high precision syringe drive unit for improved accuracy and volume reproducibility. Detectors incorporate ingenuity to improve baseline stability by reducing the influences of ambient temperature change.

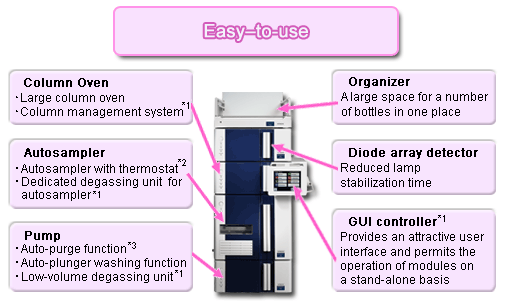

2. Ease of Use

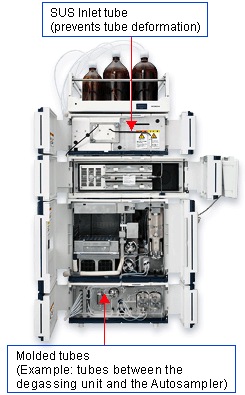

The optional GUI (Graphical User Interface) controller offers a high level of visibility, integrated control, and accessibility for automation. Available column management system enables column log data regardless of the column manufacturer. Chromaster maintains full front access operation for user convenience, and built-in common accessories and optimized tubing afford an attractive, space-saving design.

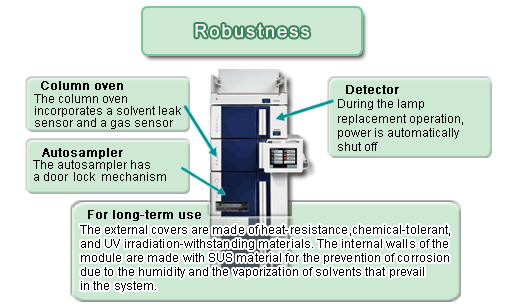

3. Robustness

The Hitachi reputation for instrument reliability continues with the Chromaster, which is made using stronger stainless steel materials and is manufactured with Hitachi's stringent quality control standards.

Options

Available Modules:

5110 Pump

5210 Autosampler (optionaltemperature control)

5310 Column Oven

UI Pad (module control)

Graphical User Interface(system control)

  • Bottle Organizer/Power Supply

5410 UV Detector

5420 UV-Vis Detector

5430 Diode Array Detector

5440 Fluorescence Detector

5450 RI Detector

  • Thermostatic Flow Cells

Library

Application Notes

Note Number:
20121120
The amino acid composition of proteins can be determined by hydrolysis of the sample followed by HPLC analysis, which typically includes a derivatization step either pre- or post- column. Here we describe an amino acid analysis method that avoids a derivatization step through use of an evaporative light scattering detector (ELSD) with the Hitachi Chromaster HPLC.

Note Number:
LC100020
The analysis of anionic surfactants is shown using the highly flexible Chromaster HPLC system with fluorescence detection.

Note Number:
20110818
The analysis of catechins in green tea is shown using the highly flexible Hitachi Chromaster HPLC system with UV detection.

Note Number:
LC100021
The analysis of chlorzoxazone is shown using the highly flexible Chromaster HPLC system with UV Detection.

Note Number:
LC100026
The analysis of contaminants in aspirin tablets is shown using the highly flexible Chromaster HPLC system with 2-wavelength measurement.

Note Number:
20120524
Analysis of six metal ions (Li+, Na+, K+, Mg2+, Ca2+, and Zn2+) in food using the highly flexible Hitachi Chromaster HPLC system with evaporative light scattering detection

Note Number:
LC100029
The analysis of Organic Acids standards using a reversed phase column with the UV absorbance detection (210 nm) on the Chromaster HPLC system.

Note Number:
20121213
Oxytocin is a peptide consisting of nine amino acids that acts as a neurotransmitter in biological systems. It is known for its roles during and after childbirth, however, it is also the focus of many research projects investigating treatment of disorders such as depression and autism. As such, the concentration of oxytocin found in patient serum is often of interest. Presented here is a method for analysis of oxytocin in serum samples using the Hitachi Chromaster HPLC with diode array detection.

Note Number:
20111121
Parabens are widely used in cosmetic and food formulations, yet also are suspected of posing health hazards. As such, it is important to accurately measure the concentration of various parabens present in a product. Presented here is a method for analysis of parabens in hand cream using the highly flexible Hitachi Chromaster HPLC system with diode array detection.

Note Number:
LC100027
The analysis of iprodione, asulam, thiophanate-methyl, and siduron is shown using the highly flexible Chromaster HPLC system with DAD detection.

Note Number:
LC100025
The analysis of phenyltoin is shown using the Chromaster HPLC system with automated sample pre-treatment via column-switching.

Note Number:
20120920
Phytosterols are a class of steroids found in vegetable oils, nuts, and fruits, and are thought to lower cholesterol levels in the blood. Although research remains inconclusive regarding the effect of phytosterols on cardiovascular disease, they continue to be of interest due to their proven cholesterol-lowering ability. Here we describe a method to analyze several phytosterols in pistachios using HPLC with evaporative light scattering detection.

Note Number:
20120920
Phytosterols are a class of steroids found in vegetable oils, nuts, and fruits, and are thought to lower cholesterol levels in the blood. Although research remains inconclusive regarding the effect of phytosterols on cardiovascular disease, they continue to be of interest due to their proven cholesterol-lowering ability. Here we describe a method to analyze several phytosterols in pistachios using HPLC with evaporative light scattering detection.

Note Number:
20111207
Steroids are often used in topical ointments due to their anti-inflammatory and immunosuppressive properties. However, their use may also result in various side effects. As such, it is important to accurately measure the concentration of steroids in topical ointments. Presented here is a method for analysis of steroids in commercially available topical ointments using the highly flexible Hitachi Chromaster HPLC system with UV-vis detection.

Note Number:
The rapid analysis of benzalkonium chloride in under 10 min is shown using the highly flexible Hitachi Chromaster HPLC system.

Literature

The Chromaster analytical HPLC system with enhanced performance, ease-of-use, and robustness.

Through a collaboration between Hitachi and Waters you can enjoy the powerful software capabilities of EmpowerTM and the industry-leading performance and value of Hitachi's liquid chromatography systems
