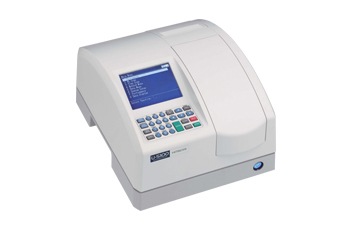

UV-Visible Spectrophotometer: Hitachi U-5100 Ratio-Beam

Eco-friendly and high-performance, the U-5100 is the best choice for a wide range of applications from teaching and routine QC to biotech and environmental testing.

Overview

This entry-level instrument utilizes ratio beam optics to give exceptional stability for a host of applications including kinetics, and offers full scanning capabilities. Routine analyses are readily carried out using the simple-to-use photometry, absorbance ratio, and time scan modes. The U-5100 also features an eco-friendly design using an ultra long-life pulsed Xe lamp and easy operation with a large LCD and standard automatic 6-cell changer.

Features

  • High performance affording the best baseline stability and the lowest noise in its class
  • Eco-friendly system using an ultra long-life pulsed Xe lamp
  • Easy operation with a large LCD and a built-in automatic 6-cell changer
  • Super compact, light-weight design that easily fits on a table top
  • Standard validation function for checking performance
  • Modes of operation: Scanning, Time (Kinetics), Photometry and Ratio (DNA/RNA Analysis)

Specifications

U-5100 Ratio-Beam Routine Spectrophotometer Specifications
Wavelength range 190 to 1,100 nm
Band pass 5 nm
Scan speed 40, 100, 200, 400, 800, 1200, 2400 nm/min
Wavelength accuracy ±1 nm (484.6.nm)
Wavelength setting repeatability ±0.5 nm
Baseline stability

0.0007 Abs/h (260 nm, 2 hrs after power-on)

Noise level 0.0002 Abs or less (RMS, 260 nm, 0 Abs)
Baseline flatness ±0.01 Abs (200 to 950 nm)
Light source Xenon (Xe) flash lamp
Detector Silicon photodiode x2
Photometric range

Abs: -3.000 to 3.000 Abs
0 to 300%T
Conc: 0.000 to 9.999

Photometric accuracy ±0.003 Abs (0 to 0.5 Abs)
±0.005 Abs (0.5 to 1.0 Abs)
Dimensions 355 mm (W) x 425 mm (D) x 235 mm (H)
14 in (W) x 17 in (D) x 9.3 in (H)
Weight Approx. 13 Kg (28.7 lbs)
Power requirements 100, 115, 220, 230 or 240 V, 50/60 Hz, 60 VA

Library

Application Notes

Note Number:
20101014
Phosphorus analysis in water is critical for general water quality assessments. This note demonstrates the analysis of total phosphorus in waste water using the Hitachi U-5100 UV-Vis Spectrophotometer and total phosphorus reagent kit.

Literature

Eco-friendly and high-performance, the U-5100 is the best choice for a wide range of applications from teaching and routine QC to biotech and environmental testing.

UV Solutions software is used to control Hitachi's UV-Vis and NIR spectrophotometers, providing an easy-to-use interface for measurement, data processing, and reporting.
