Products under development, will be released in the near future

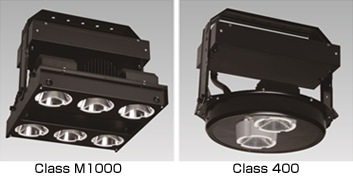

LED HIGHBAY LUMINAIRE

  1. Available in a wide variety of power classes, up to 1000W Metal Halide or as low as 250W mercury Lamp equivalents.
  2. LED lighting source life 60,000 hours
  3. Lights up instantly.
  4. High efficiency 119.7 - 136.7 lm/W

Comparison Chart of Annual Electricity Costs

Comparison Chart of Annual Electricity Costs
　 Mercury Lamp 400W LED Class 400
Quantity 100 100Same Qty
Input Power (W/set) 415 93.5 (Average)
Annual power consumption(Kw) 41.5 9.35Save 77%
Annual Electricity Costs
*3,000 hour/year 4 TWD/kWh		 498,000 TWD 112,200 TWDSave 385,800 TWD
Brightness Approx. same brightness
Lifetime(h) 12,000 60,0005 times longer

Specification

Initial Illumination Correction Type

Class M1000(Replacement of Metal Halide Lamp 1000W)
Beam Angle Model Rated Luminous Flux (lm) Input Power (W) (*1) Rated Input Voltage (V) Input
Current(A)		 Efficiency
(lm/W)		 Weight (kg)
Middle Angle(60 degree) MTE441NN-J22B TW 43,800 323(287) 220 1.51 135.6 8.9
Wide Angle(90 degree) MTE441MN-J22B TW 43,000 323(287) 220 1.51 133.1 8.7
Class 700 (Replacement of Mercury 700W)
Beam Angle Model Rated Luminous Flux (lm) Input Power (W) (*1) Rated Input Voltage (V) Input
Current(A)		 Efficiency
(lm/W)		 Weight (kg)
Middle Angle(60 degree) MTE283NN-J22B TW 28,000 213(189) 220 1.02 131.4 8.9
Wide Angle(90 degree) MTE283MN-J22B TW 25,500 213(189) 220 1.02 119.7 8.6
Class M400 (Replacement of Metal Halide Lamp 400W)
Beam Angle Model Rated Luminous Flux (lm) Input Power (W) (*1) Rated Input Voltage (V) Input
Current(A)		 Efficiency
(lm/W)		 Weight (kg)
Middle Angle(60 degree) MTE223NN-J22B TW 22,800 171(152) 220 0.83 133.3 6.7
Wide Angle(90 degree) MTE223MN-J22B TW 21,600 171(152) 220 0.83 126.3 6.5
Class 400 (Replacement of Mercury Lamp 400W)
Beam Angle Model Rated Luminous Flux (lm) Input Power (W) (*1) Rated Input Voltage (V) Input
Current(A)		 Efficiency
(lm/W)		 Weight (kg)
Middle Angle(60 degree) MTE143NN-J22B TW 14,200 105(93.5) 220 0.52 135.2 5.7
Wide Angle(90 degree) MTE143MN-J22B TW 13,500 105(93.5) 220 0.52 128.5 5.5
Class 250 (Replacement of Mercury Lamp 250W)
Beam Angle Model Rated Luminous Flux (lm) Input Power (W) (*1) Rated Input Voltage (V) Input
Current(A)		 Efficiency
(lm/W)		 Weight (kg)
Middle Angle(60 degree) MTE093NN-J22B TW 10,800 79(70.5) 220 0.395 136.7 5.7
Wide Angle(90 degree) MTE093MN-J22B TW 10,260 79(70.5) 220 0.395 129.8 5.5

General specifications

Color Temperature: 5000K
Rated Life Time : 60,000 hours

  • * Rated life time is the design life which is calculated based on thermal design established in electric parts, and actual life time will vary depending on operating environment and operating conditions.

Ambient temperature:
Class 1000 model ; Please keep -10 to 40 degrees, can be used in the temperature up to 40 degrees only 3 months a year.
Class 700/M400/400/250 model ; Please keep -10 to 35 degrees, can be used in the temperature up to 45 degrees only 3 months a year.

*1
The figures in parenthesis shows average wattage. The average wattage is the average figures in electric fluctuation by initial illumination correction function.

GRID SYSTEM TYPE LED LUMINAIRE
(600mm ×600mm 4,900lm/2,700lm Type)

  1. Available to replace from fluorescent lamp fixture
  2. High efficiency 130.6 - 135.0 lm/W
  3. Lights all the way to the edge
  4. Long life (Rated Lifetime 40,000 hours), Less maintenance

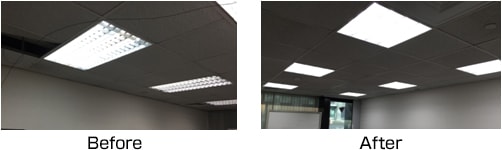

Case study

Comparison Chart of Annual Electricity Costs
　 Fluorescent lamp
40W x 3lamps		 LED 4900lm Type
Quantity 103 103Same Qty
Input Power (W/set) 135.0 33.9(Average)
Annual power consumption(Kw) 13.905 3.4917Save 75%
Annual Electricity Costs
*2,400 hour/year 4 TWD/kWh		 133,488 TWD 33,521 TWDSave 99,967 TWD
Brightness Same brightness
Lifetime(h) 12,000 40,0003.3 times longer

Specification

Illumination Correction Type

TLE45A04N-J12TW
Rated Luminous Flux (lm) Input Power (W) (*1) Rated Input Voltage (V) Input
Current(A)		 Efficiency
(lm/W)		 Color Temperature(K) Rated Life Time (h) (*2)
4,900 37.5 (33.9) 110/220 0.35/0.183 130.6 5,000 40,000
TLE45A04N-J12TW
Rated Luminous Flux (lm) Input Power (W) (*1) Rated Input Voltage (V) Input
Current(A)		 Efficiency
(lm/W)		 Color Temperature(K) Rated Life Time (h) (*2)
2,700 20.0 (18.1) 110/220 0.19/0.10 135 5,000 40,000

Dimming Type

TLE45A04N-JZ12TW
Rated Luminous Flux (lm) Input Power (W) (*1) Rated Input Voltage (V) Input
Current(A)		 Efficiency
(lm/W)		 Color Temperature(K) Rated Life Time (h) (*2)
4,900 37.5 110/220 0.35/0.183 130.6 5,000 40,000
TLE45A02N-JZ12TW
Rated Luminous Flux (lm) Input Power (W) (*1) Rated Input Voltage (V) Input
Current(A)		 Efficiency
(lm/W)		 Color Temperature(K) Rated Life Time (h) (*2)
2,700 20 110/220 0.19/0.10 135 5,000 40,000

General specifications

Ambient temperature:
Please keep -10 to 35 degrees.

*1
The figures in parenthesis shows average wattage. The average wattage is the average figures in electric fluctuation by initial illumination correction function.
*2
Rated life time is the design life which is calculated based on thermal design established in electric parts, and actual life time will vary depending on operating environment and operating conditions.

聯絡窗口

新事業開発部　藍先生　TEL: 02-2563-4750 ext.951
