Fluorescence Spectrophotometer F-2700

Fluorescence Spectrophotometer F-2700

The operation panel can be standard installed, and F-2700 be used by the Stand-alone.
The space of PC can be reduced.

Features

  1. Leading Edge Sensitivity (800 or better RMS)
  2. Wide Dynamic Range (with improved zero point adjustment)
  3. Ease of Use / Stand-alone Operation (no PC required)
  4. Optional PC Operation
  5. Automatic Performance Monitoring
-

Specifications

ItemDescription
Operation mode Stand-alone or PC operation
Light source 150W Xenon lamp (self-deozonating lamp house)
Photometric principle Monochromatic light monitoring ration calculation
Sensitivity 800 or more (RMS) (bandpass 5nm, response time 2 S)
Bandpass 2.5, 5, 10, 20 nm (both Ex and Em)
Wavelength scan speed 60 – 3,000 nm/min (four steps), 12,000 (when PC control)
Dimensions / Weight 600 (w) x 503 (D) x 343 (H) mm/ approx.41 kg
Power consumption AC100, 115, 220, 230, 240 V 50/60 Hz 400 VA

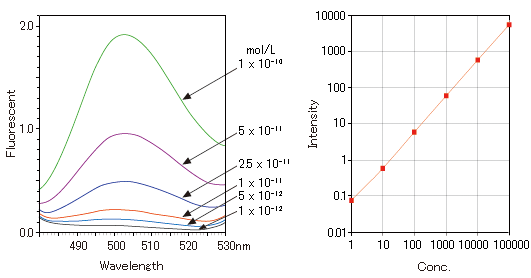

Fluorescein Measurement

-

Owing to the F-2700’s high sensitivity and wide dynamic range (about six orders of magnitude),
low concentration and small volume samples can be analyzed effectively.
