X-ray particle contaminant analyzer

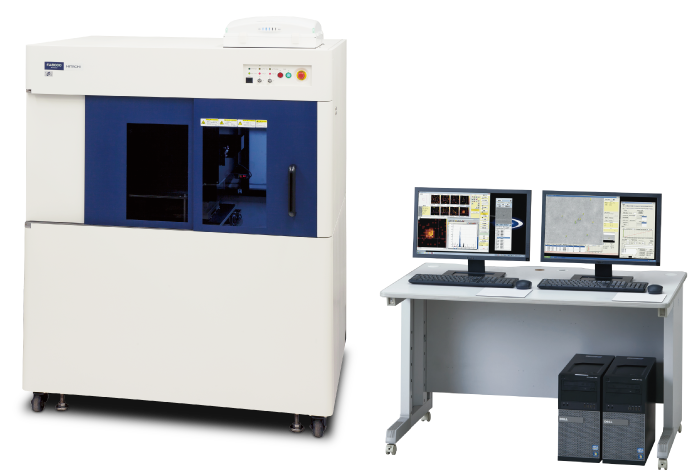

EA8000A

EA8000A

With the world's highest level capability of X-ray foreign matter inspection, EA8000A detects and analyzes foreign matter in lithium-ion rechargeable batteries with high throughput.

For lithium-ion rechargeable batteries, contamination by foreign matters directly reduce battery performance, safety, and yield rate. Hitachi High-Tech's X-ray particle contaminant analyzer EA8000A is an inspection device that quickly detects and identifies 20μm-class microscopic metal foreign matters that may cause problems in lithium-ion rechargeable batteries. Just selecting inspection conditions and starting measurements automatically execute the process from capturing the X-ray transmission image to detecting metallic foreign matters and identifying its elements. This greatly contributes to failure analysis and inspection at manufacturing sites for lithium-ion rechargeable batteries.

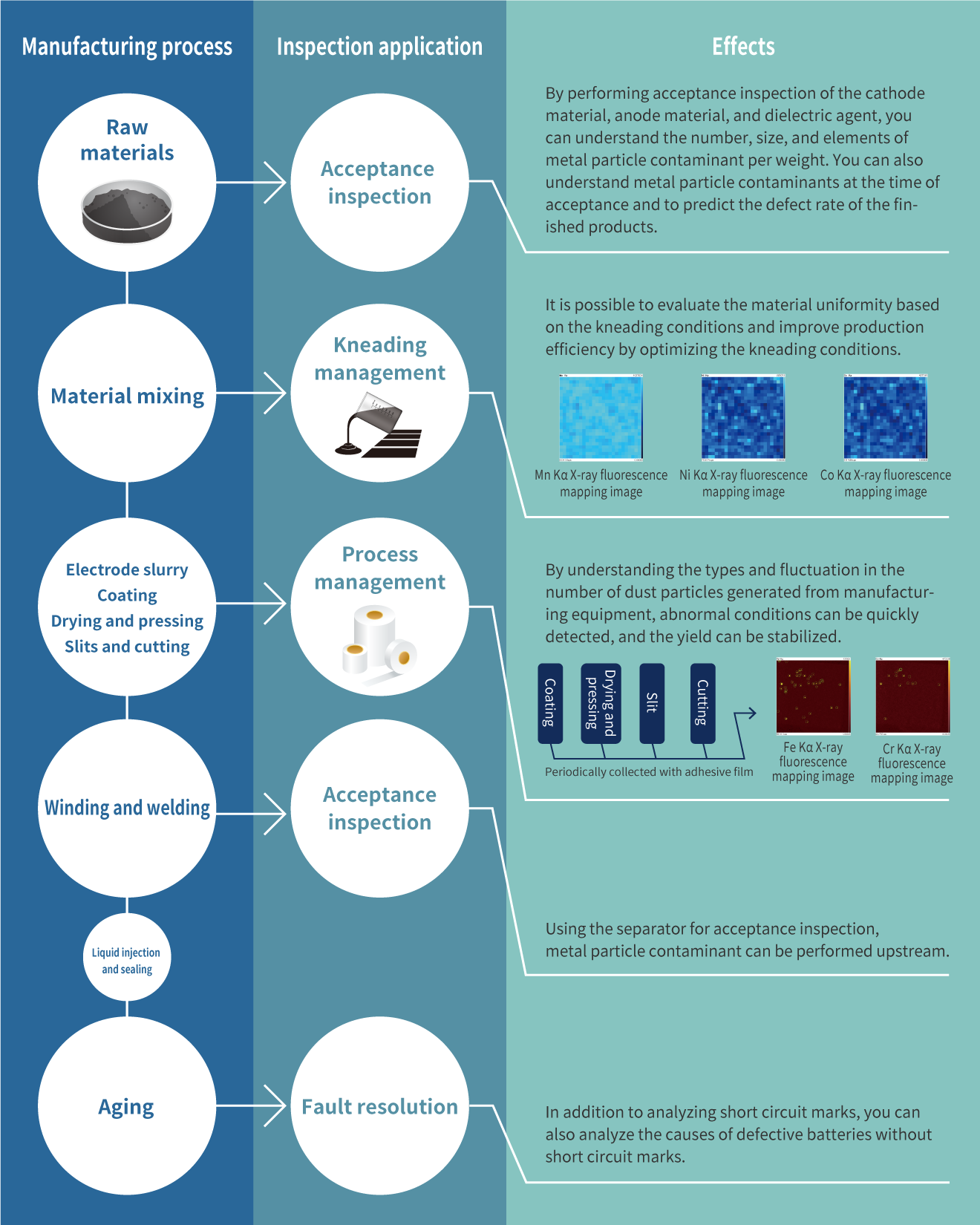

Application example of EA8000A in lithium-ion rechargeable battery manufacturing process

Application example of EA8000A in lithium-ion rechargeable battery manufacturing process

Application example of EA8000A to lithium-ion rechargeable batteries: Acceptance inspection

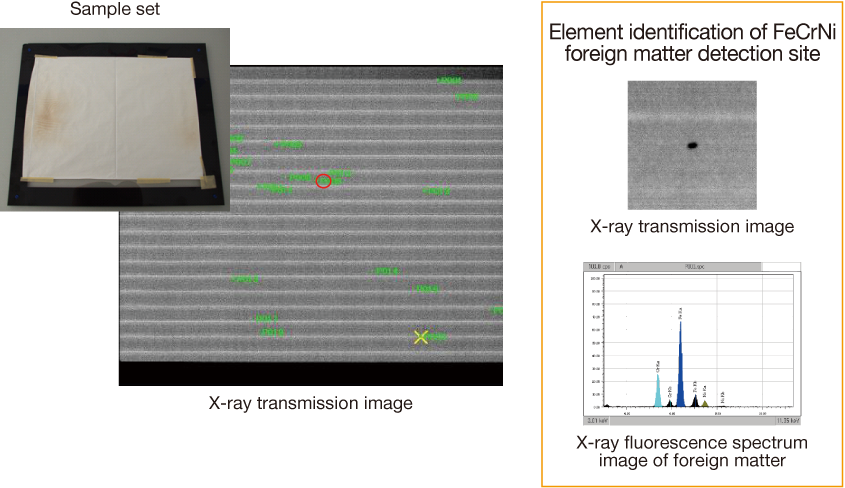

Metallic foreign matter inspection of separator

Approximately 5 minutes, the inspection of foreign matter in a range equivalent to A4 size can be completed with a transmission X-ray image.

Metallic foreign matter inspection of separator

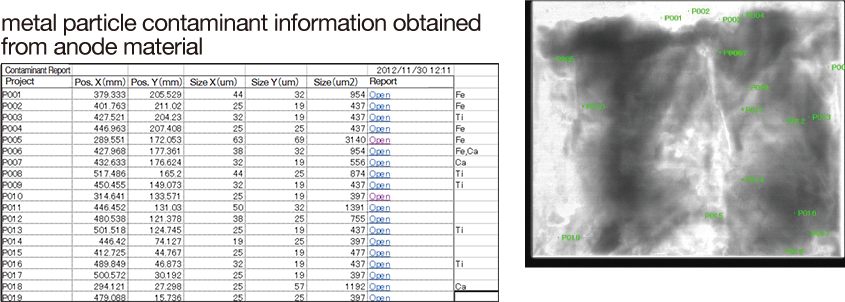

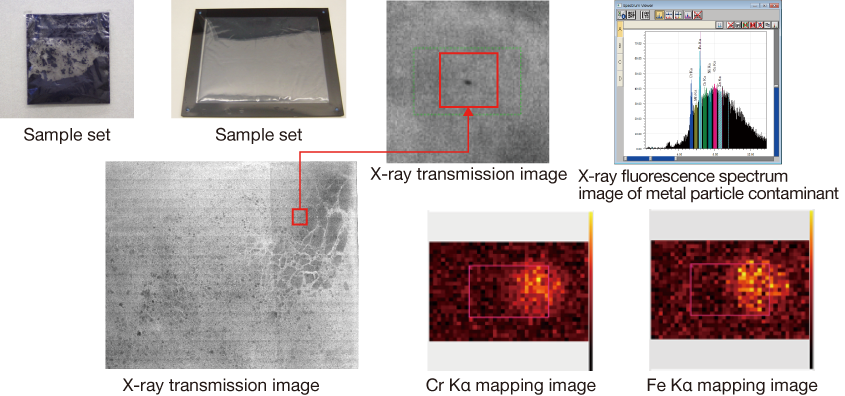

Detection of metallic foreign matter in anode material (graphite)

Metallic foreign matter in fine powder with a small atomic number can be detected by putting an appropriate amount in a bag and spreading the particles thinly.

Detection of metallic foreign matter in anode material (graphite)

Detection of metallic foreign matter in anode material (graphite)

Metallic foreign matter in fine powder with a small atomic number can be detected by putting an appropriate amount in a bag and spreading the particles thinly.

Detection of metallic foreign matter in anode material (graphite)

Application example of EA8000A to lithium-ion rechargeable batteries: Work management

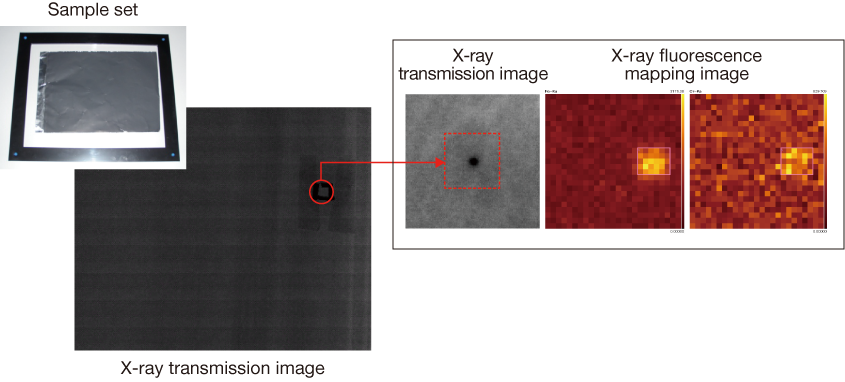

Detection of metallic foreign matter on cathode plate

Measurement of coated cathode and anode plates enables production management.

Detection of metallic foreign matter on cathode plate

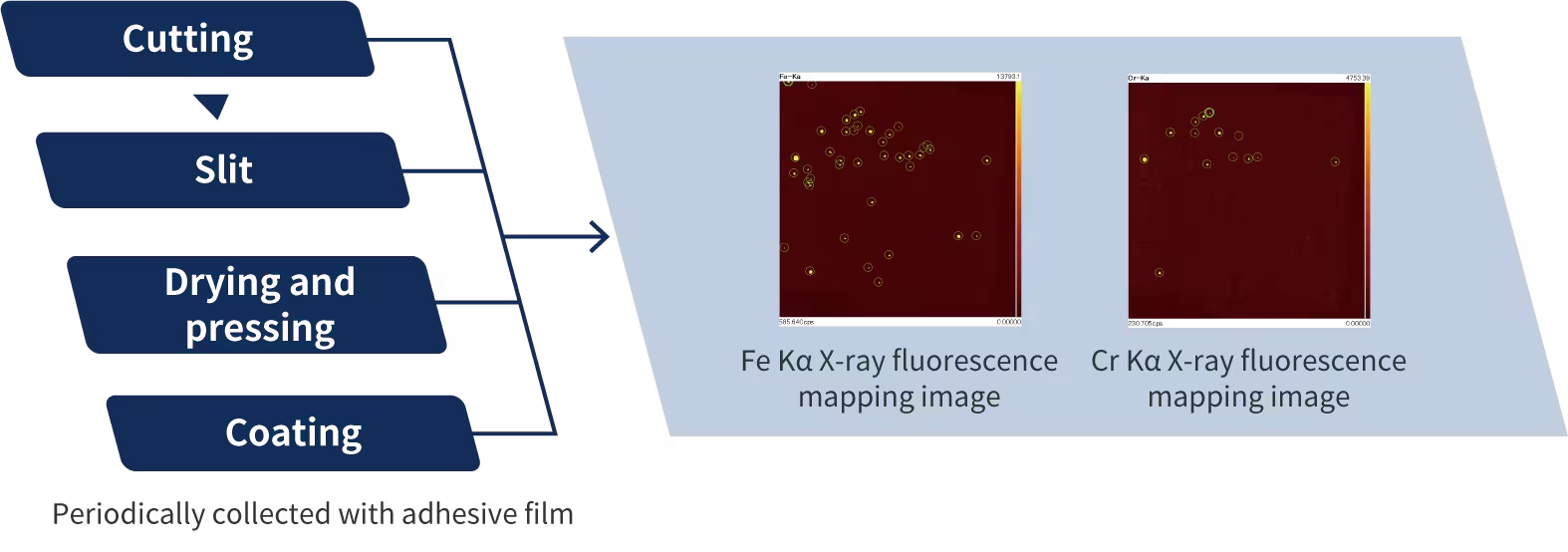

Management of dust particles from manufacturing equipment

By periodically measuring the setup tape, the amount of dust generated by the device and its fluctuations, and the composition of the generated dust are comprehensible, and the device can be managed too.

Management of dust particles from manufacturing equipment

Application example of EA8000A to lithium-ion rechargeable batteries: Failure analysis

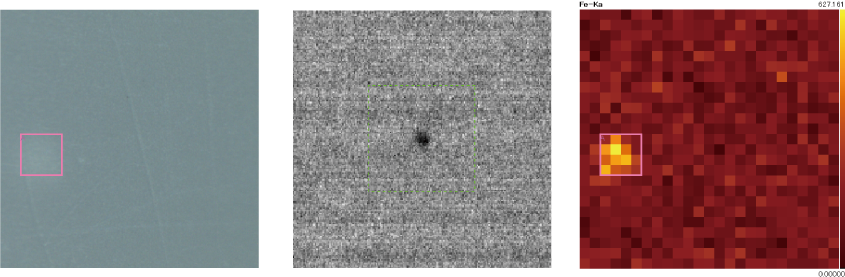

Contamination by metallic foreign matter

Fe that could not be found by visual inspection of short circuit marks alone is detected. Metallic foreign matter may become mixed during the separator manufacturing process. Even if aging does not cause a problem, repeated charging and discharging may cause a defect.

金属異物の混入
