The Primaide 1110 Pump has been developed for reliable analysis and shares characteristics with Hitachi's existing HPLC pump models. Its consistently high level of performance provides users with strong support in everyday analysis.
- Improvement of flow rate stability
For pulse compensation, a proprietary real-time feedback method has been developed for Hitachi’s pumps. Not only has the pulse been significantly reduced, but the Primaide 1110 Pump estimates pressure fluctuations and employs the optimal timing to set the plunger speed interval.
- Improvement of retention time reproducibility
For gradient analysis, injection by the Primaide 1210 Autosampler is synchronized with the movements of the pump. This ensures a highly reproducible retention time, and precise analysis.
Gradient Performance Evaluation/RT and Area Reproducibility
|Peak No.||Component||Retention Time|
|Average / min.||R.S.D. / %|
||HITACHI LaChrom C18 (5 µm) 4.6 mm I.D.×150 mm L.
||A : CH3OH B : H2O
||0 - 11 min A 65 → 100%
||UV 265 nm
||10 µL (100 g/mL each.)
The Primaide 1210 Autosampler incorporates direct injection, allowing the automation of consecutive analyses without wasting precious sample.
- Direct injection of small-quantity samples and quicker analysis
In the direct injection method, the sampling needle becomes part of the flow channel so that the sample in the needle flows into the channel with zero waste. This is a great advantage in the analysis of valuable small-quantity samples. In addition, since the injection method is simpler than using a sampling loop, the injection cycle is shortened by half. This method accelerates throughput and improves efficiency in the analysis of many samples.
- Improved reproducibility results in high-precision analysis
The syringe for sample measurement is driven by a high-performance motor. The drive improves the reproducibility of injection. Furthermore, peak retention times are also more repeatable due to synchronization of injection with the pump motion, achieving higher analytical reliability.

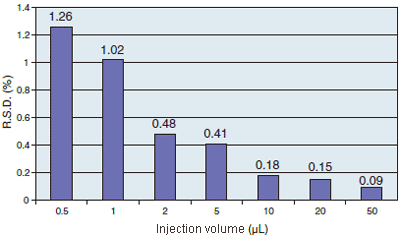

Injection Volume Reproducibility
||CH3OH : H2O = 60 : 40
||UV 265 nm
1310 Column Oven
The Primaide 1310 Column Oven also functions as a cooler. The preheating function obtains better performance from columns, achieving sharper peak shapes.
- More resolved peaks with optimized heating
Pre-heating with an efficient block heater improves the symmetry and sharpness of peaks, eliminating the influence of ambient temperature changes. The column installation space, which features an air circulation system, permits the easy mounting and detaching of columns.
- Cooling function is included as standard
The oven can regulate the temperature from 5°C to 65°C.
1410 UV Detector
The optics of the Primaide 1410 UV detector allows data collection with lower noise and drift. The lamp and flow cell are situated in a front-access layout and are easily replaceable.
- Low noise for high-sensitivity detection
The Primaide 1410 UV detector achieves a noise level of no more than 0.6 × 10 -5 AU, greatly enhancing trace component analysis.
- High response and low noise for rapid analysis
Low-noise measurements in 0.05 seconds.
High-sensitivity detection rapidly yielding sharp and accurate peaks.
- Stable, without influence from ambient temperature changes
Since local environments may vary considerably, the optics of the UV detector is well designed to avoid the effects of daily and seasonal temperature changes, ensuring stable and reproducible results.
- Wavelength measurement in the UV region with a built-in Hg lamp
Use the 254-nm emission line of the mounted Hg lamp to test the accuracy of wavelength measurement in the UV region, which is the most utilized region in liquid chromatography. This test is conducted using 3 wavelengths from the Hg and D2 lamps, enabling highly reliable analyses across a broad wavelength range.
1430 Diode Array Detector

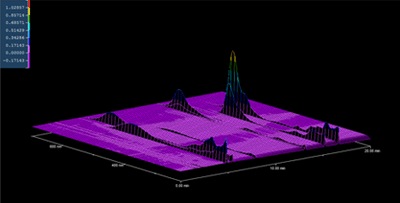

The Primaide 1430 Diode Array Detector is as sensitive as a UV detector. The DAD system has many functions, including spectrum collection, chromatography using multiple wavelengths, a peak purity test, a spectral library, and more.
- High sensitivity
Novel optics and improved software reduce noise considerably (0.5 × 10-5 AU or less). The reputation, "DADs are less sensitive," is now obsolete.
- Minimizing the influence of temperature changes in the measurement cell
The light source is stabilized via a large lamp housing. The spectrometer and housing are separated and thermally insulated. By cooling the lamp housing separately, the influence of ambient temperature is minimized. The new design incorporates temperature sensors as well as an associated variable rotation speed cooling fan, which largely eliminate temperature changes inside the instrument. This reduces noise and enhances stability, allowing for stable analysis day after day.
- High resolution and accurate spectra
High wavelength resolution (0.78 nm/data point) is achieved with an array of 1,024 photo diodes. Uniform resolution is maintained throughout a wide range of wavelengths from the UV to VIS, thanks to the diffraction optics, which features a grating.
- Digital noise reduction in rapid analysis
Data with a low level of noise are obtained in a very short sampling period (0.05 seconds). Noise-free, sharp peaks are obtained during rapid analysis.
- Automatic wavelength calibration
A built-in Hg lamp is utilized in the automatic wavelength accuracy test for the commonly-used UV region.
Organizer capable of accommodating various solvent bottles
The organizer can accept the simultaneous mounting of the following solvent bottles.
||3.785 L (U.S. gallon bottle) × 2 + 500 mL × 2
||1.0 L × 5
Organizer also is a power supply module
The organizer, which is also a power supply module, provides power to one pump, one autosampler, one detector (one UV detector, or one Diode array detector), and one interface control board.
