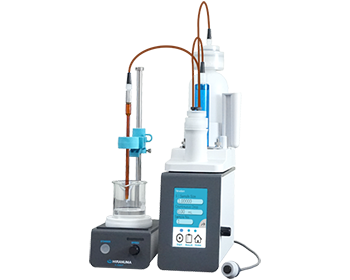

Auto Buret UCB-3000
A variety of functions, such as an easy-to-read
color touch panel and
one-handed precision dispensing,
support manual titration.
You can choose from three types of dripping methods.
- Touch panel Start button
- Attached remote switch
- INCREMENT knob on the side of the main unit (Micro-drops near the endpoint!)
Features

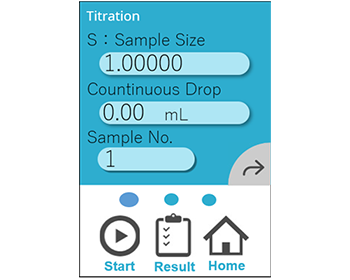

1.Titration support
- Concentration Calculation
- Recalculate concentration (last result only)
- Shorten time by setting continuous dripping
- Stores up to 99 points of titration volume
- Three types of titration patterns

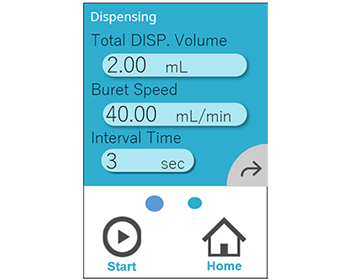

2.Dispensing support
- Can dispense a set volume
- Setting of dispensing operation interval time
- Set the number of repetitive operations
- Totalize/non-totalize dispensing
3.Extended Functions
- Host/balance connection via RS-232C
-
Can also be used as a Buret for Auto Titrator
*For COM-A19/1700(A)
*Signal code (P/N: HSJ832875) is required. - Optional magnetic stirrer
- Easy replacement of Buret Head *Conventional H-1700 can also be used
Specifications
Specifications of UCB-3000 and H-3000-20
| Model | UCB-3000/H-3000-20 |
|---|---|
| Wetted part material | PTFE, hard glass, ceramic (*1) |
| Connecting tubes | φ2 x φ3 PTFE tube (brown) |
| Reagent bottle size | 500 mL |
| Valve switching | Automatic switching by ceramic lapping |
| Operation Mode | 3 modes (titration / metered volume dispensing / buret (for auto titrator)) |
| Display | 4.3 inch color LCD touch panel |
| Discharge speed | - Set from 0.01 to 40.00 mL/min - Three types of discharge acceleration patterns (in titration mode) |
| Buret accuracy | Relative accuracy: ±0.1% or less (with full capacity discharge from 20-mL syringe at factory settings (new)) Repeat accuracy: 0.01 mL or less (with full capacity discharge from 20-mL syringe, n=6 standard deviation) |
| External input/output | RS-232C: 2 port ( For Computer connection, Balance) |
| Power supply | Does not included AC/DC conversion adapter. (*2) |
| Dimensions / weight | 115(W) × 255(D) × 180(H) mm / Approx. 3.5 kg (UCB-3000) 120(W) × 215(D) × 350(H) mm / Approx. 0.6 kg (H-3000-20 Buret Head) |
*1 Hydrogen fluoride cannot be used.
*2
Please prepare the following AC adapter.
1) AC Inlet : IEC60320 C14
2) DC output rated voltage : DC24V
3) DC output capacity : 36W or more (less than 100W)
4) Rated input voltage : AC 90V-240V (for the voltage of the place of use)
5) AC input frequency : 45～66Hz
6) Polarity symbols : Center positive
7) DC plug shape : Inner diameter: 2.1mm, Outer diameter: 5.5mm, Length: 9.5mm
8) Certified standards : CE marking
9) AC CODE : Must be compatible with the adapter specifications to be connected
Options
- Buret head H-3000 series
- Stirrer K-3000TS
