FIB micro-sampling unit and FIB micro-sampling method

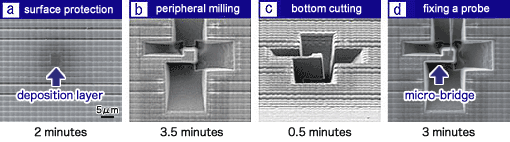

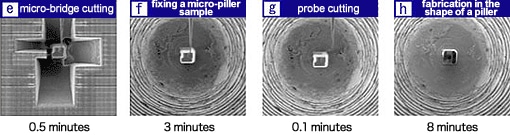

An example of FIB micro-piller sampling

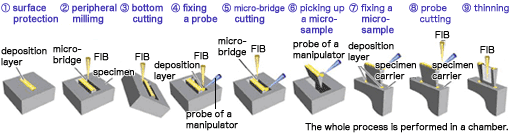

A micro-pillar sample including an analysis point is directly cut out of semiconductor device. Micro-samples are cut out or trimmed in various shape by varying the incident FIB-direction.

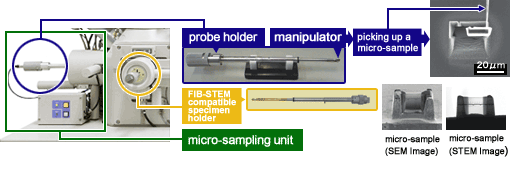

System configuration example

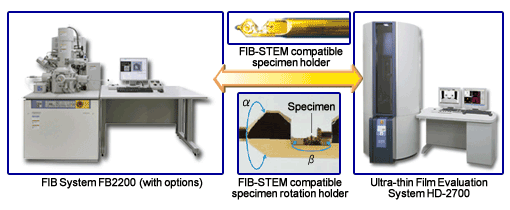

A new-developed semiconductor device evaluation system consists of FB2200 FIB system and HD-2700 200 kV STEM. The system performs from searching defective points to analyzing structure in sub-nano meter scale within several hours.
An example of DRAM observation
SEM image of a micro-pillar specimen on the needle stub
Bright field STEM image of a micro-pillar specimen
