Fluorescence Spectrophotometer F-2700

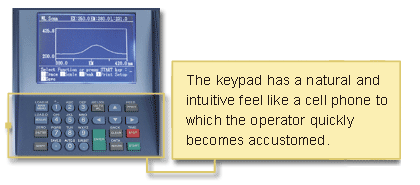

The operation panel can be standard installed, and F-2700 be used by the Stand-alone.
The space of PC can be reduced.
- Leading Edge Sensitivity (800 or better RMS)
- Wide Dynamic Range (with improved zero point adjustment)
- Ease of Use / Stand-alone Operation (no PC required)
- Optional PC Operation
- Automatic Performance Monitoring
|Operation mode||Stand-alone or PC operation|
|Light source||150W Xenon lamp (self-deozonating lamp house)|
|Photometric principle||Monochromatic light monitoring ration calculation|
|Sensitivity||800 or more (RMS) (bandpass 5nm, response time 2 S)|
|Bandpass||2.5, 5, 10, 20 nm (both Ex and Em)|
|Wavelength scan speed||60 – 3,000 nm/min (four steps), 12,000 (when PC control)|
|Dimensions / Weight||600 (w) x 503 (D) x 343 (H) mm/ approx.41 kg|
|Power consumption||AC100, 115, 220, 230, 240 V 50/60 Hz 400 VA|

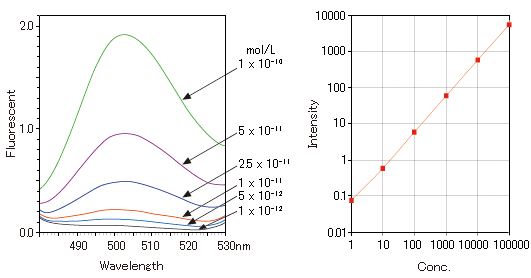

Owing to the F-2700’s high sensitivity and wide dynamic range (about six orders of magnitude),
low concentration and small volume samples can be analyzed effectively.
