Dioxin Precursor /PCB Monitor CP-2000/CP-2000P

Dioxin Precursor /PCB Monitor CP-2000/CP-2000P

These monitors can measure and monitor the concentrations of chlorophenol and chlorobenzene contained in exhaust gas from garbage incinerator or the PCB concentration in PCB decomposing facilities continuously.

Features

  • Uses atmospheric pressure chemical ion source – ion trap mass analyzer for high-precision measurement. (MS/MS function)
  • Column-less direct sampling for high-speed measurement. (Several seconds and so forth)
  • Continuous measurement by means of the pipe connection or easy high-speed measurement in the wiping method
  • Movable with casters
  • Automatic concentration calibration by adding standard samples (Optional)

Basic Configuration

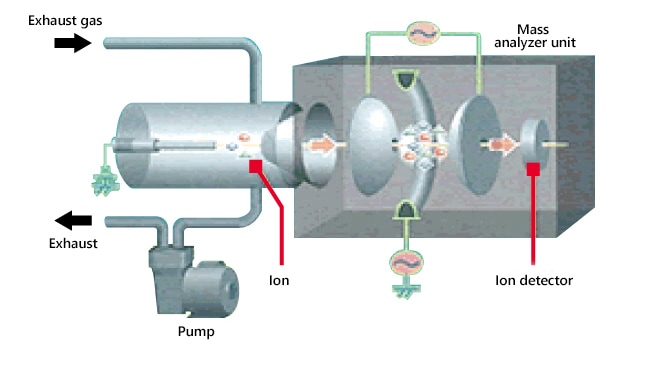

Basic Configuration of Dioxin Precursor Monitor

-

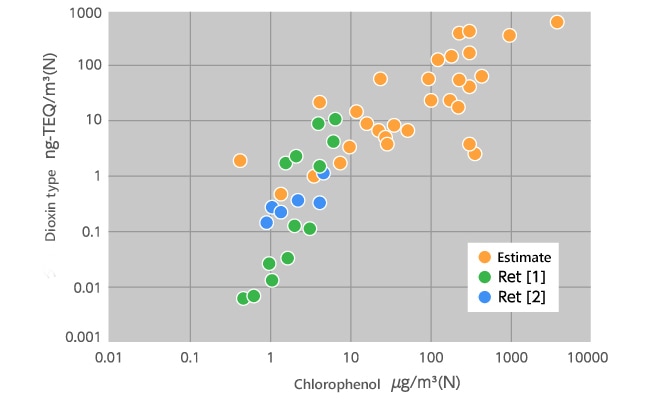

Concentration Correlation of Dioxins and Chlorophenol

-

Specifications

ModelCP-2000CP-2000P
Site Waste incineration plant/ Waste treatment plant PCB Processing facility
Measuring Object Dioxin Precursor
(Trichlorophenol – dichlorobenzene)
PCB
1-7 chloride PCB
Measurement Method Atmospheric Chemical Ionization + Ion trap mass spectrometry
Lower Detection Limit(*) 0.5µg/Nm3 Total 3µg/Nm3
Installation Location Indoor, Outdoor Indoor, Outdoor

* May differ depending on the components of the exhaust gas
