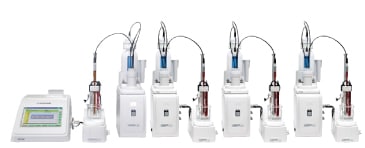

HIRANUMA Automatic Titrator COM-1700A Series

HIRANUMA Automatic Titrator COM-1700A Series

Automatic Titrators designed to meet your needs now and in the future! Our most Intelligent and advanced titrator ever produced, the COM-1700A series.


Color LCD touch panel

Large sized color graphics LCD displays real-time titration curves and differential curves to show reaction tendencies, etc. All information is easily viewed.

Browse results on a PC in a LAN connection

Results data and curves can be displayed on a PC with no optional software.

USB flash memory stick port

The titration results and titration conditions including titration/differential curve data can be stored on a USB JumpDrive. To edit and view the data stored in the USB, an optional software "Titra-Net Viewer" is necessary.

GLP correspondent functions to support reliability of the titration results.

Buret precision test, electrode calibration, reagent remaining volume indication, and other useful functions for maintenance.

Different titrations can run in parallel at the same time.

Up to four titration stations are available.


Password Control and User Authority

Setting password administration allows setting the authority of operation limits for each user. User authority is selected from "Administrator" and "Limited". The one can operate all function and the other can operate limited function.


Item Specifications
Multitasking function Up to 4 parallel titration stations
Titration methods Potentiometric titration (acid/base, redox, precipitation, non-aqueous, complexiometric titrations), Photometric titration *each requires a proper measurement unit: S/M-1700 amplifier.
End-point detection mode  Learn titration, Auto inflection-point detection, Set-point detection, Set/Auto end-point detection, Cross-point (F,B,V1,V2) detection, Dispensing, TAN/TBN in petroleum products (Oil1/Oil2), pH measurement, pH-Stat, pKa, Calculation mode
Number of endpoints Up to 5 end-points with linked method files or a Learn titration file.
File function Titration run files: 51 files
Sample files: 99 files (Sample No., ID code, Sample size, Master file)
Auto input function Automatic input of blank, factors, concentration measurement results
Calculations Concentration calculation, statistics calculations, pH automatic compensation, recalculation
Data capacity Internal memory: 100 data, USB flash memory (≥256 MB) Max. approx.9900 data
GLP compliant function Buret precision test, Electrode check, Buret use frequency, Electrode maintenance, Reagent level alarm
Burets Expandable up to 10 burets per titration station
Printer Built-in thermal printer (paper width: 58 mm)
*Optional external printer: Dot impact printer PR-302B
Touch panel screen 7.5 inch color graphics LCD
External input/output RS-232C: 1 port, LAN: 1 port, USB flash memory stick: 1 port
Interfaces for external printer and C-1712 sample changer
Power supply AC100-240 V, 50/60 Hz, 60 VA
Dimensions / Weight Main unit: 250(W) x 400(D) x 200(H) mm / Approx.6 kg


  • B-1700
  • Titration Station TS-1700
  • Sample Changer C-1712 series
