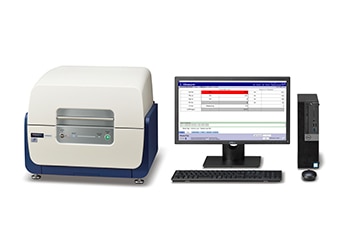

XRF Analyzer EA1400
For customers in such variety of application fields as process and quality control of cement or slags, failure analysis of abnormal spot, and inspection of foreign matter as well as RoHS inspection, the EA1400 delivers on reducing measurement time, simplifying the management of measurement results, reducing operational mistakes, and improving efficiency.
The newly developed silicon drift detector (SDD)
High sensitivity and high throughput measurement
New detector with increased quantum efficiency in the high energy region, making high-sensitivity, high-throughput measurement of the Cd Kα, Pd Kα, Ba Kα energy bands possible.
Higher resolution and higher count rate

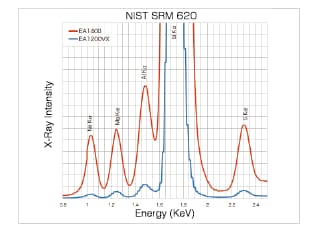

Compared to previous models (EA1200VX [see graph] or EA1000VX) EA1400 excels in detecting trace elements adjacent to the main components of the sample thanks to its high-resolution, high-count rate SDD which allows for exceptional performance in tasks such as quality control of metals and others.

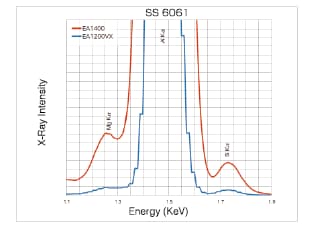

Vacuum System and New SDD
The sensitivity of light elements is greatly improved by using the new detector and vacuum system, which aids in process and quality control of slag and cement.
From RoHS control to an extensive range of areas
RoHS: Screening of Cd in brass made faster
More than doubled the throughput when measuring traces of Cd in brass and other metals compared to our previous model (EA1000VX.)
|Lower Limit of Detection||4||13||11|
* Shown data is an example, not to be considered guaranteed performance.

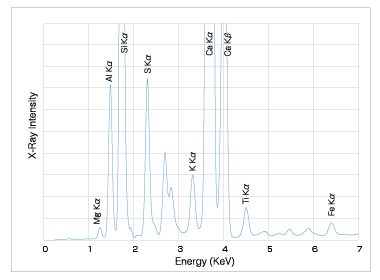

Control process in smelting: fast, accurate measurement of main elements in slag
Smelting process conditions are controlled using the information from slag’s major components; Si, Ca, Al, Mg. The new SDD provides considerable improvement in accuracy with light elements, like Mg, in particular.
Quality control: detection of adhered, buried foreign matter

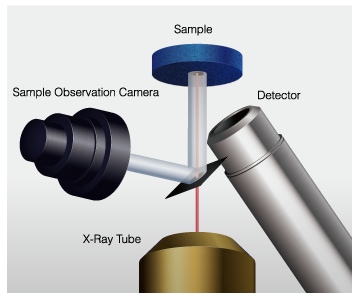

With X-ray diagonal irradiation system, it has been difficult to measure samples with uneven or irregular surface and contaminants adhered to the base material. The EA1400, equipped with optimized X-ray irradiation and sample observation mechanism, enables detecting and identifying elements originating from contaminants.
|Environment||Normal atmosphere (Al～U)
Vacuum (Na～U) *Optional
|X-ray direction||X-Ray Vertical Irradiation (Coaxial Sample Observation)|
|X-ray source||Small Air-cooled x-ray tube (Rh target)|
|Detector||Newly developed Silicon Drift Detector (SDD)|
|Measurement Area||1,3,5 mmφ|
|Filter||5 filters automatic switching|
|Power requirements||AC100～240V (50/60Hz)/190VA|
|Sample changer||Compatible (12samples) *Optional|
