HIRANUMA Oil Evaporator EV-2000L

HIRANUMA Oil Evaporator EV-2000L

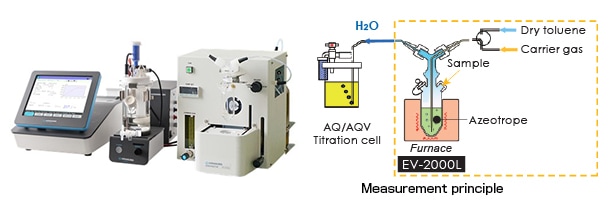

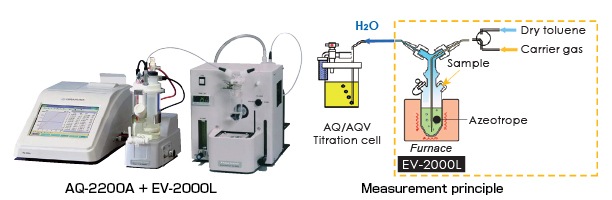

The EV-2000L Oil Evaporator utilizes azeotropic distillation.
It completely separates water from sample matrices, thus eliminating any side reactions with interfering substances. The EV-2000L can be used with all — Karl Fischer titrators, or any other manufacturer’s titrators.

Features

  • Keeps the cell always clean!
  • Compact cubic design
  • Easy to use and simple maintenance
-

Specifications

Item Specifications
Evaporation method Azeotropic distillation method
Heating temperature Room temperature to 200 ˚C
Heater Band heater
Evaporation chamber capacity Max. 10 mL
Azeotropic solvent Toluene / Xylene / n-Octane (5 to 10 mL per measurement)
Carrier gas Nitrogen gas or dry air* *Optional dry air pump is required.
Flow rate: 30-300 mL/min.
Input pressure: 0.8 MPa or less
Desiccant: Molecular sieves*
Power supply AC100-240 V, 50/60 Hz, 150 VA
Dimensions / Weight 220(W) × 370(D) × 265(H) mm / Approx. 7 kg

* Molecular sieves required for drying carrier gas is not included in the instrument.

Options

  • Dry air pump
    Compact, integrated air pump eliminates the need for nitrogen carrier gas.
