HIRANUMA Automatic Titrator COM-A19
Features
Large Color LCD Touch Panel
A large 8.4″ touch panel screen enables the user to input text easily. Selecting functions from the menu can be operated intuitively. The protective film can be replaced to protect it from scratches and wear over the long term.
LCD Display Adjustable in 16 Positions
Each user can adjust the angle as he/she likes. The position can be locked so that it will not move when the screen is pressed.

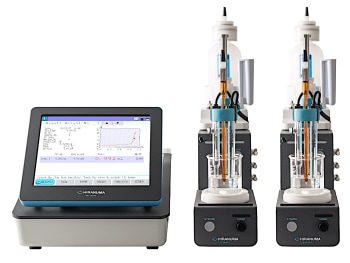

Two Types of Titration in Parallel
By adding a titration station and stirrer, two types of titration can be carried out in parallel.

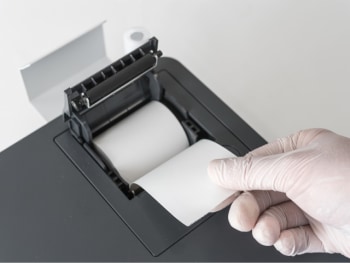

Built-in Thermal Printer
Equipped with a built-in thermal printer with a paper roll 58-mm wide, which can be set up simply by inserting the paper roll and closing the cover.
USB/LAN Port
Approximately 9,900 results can be stored on a USB memory stick. With optional software, the user can view the data on a PC or use a recalculation function. With a LAN connection, the user can also view the data on a Web browser.

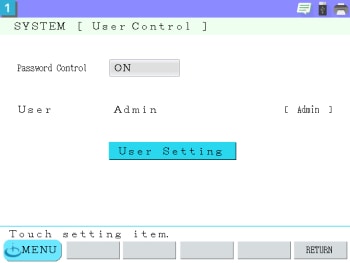

User Authentication Settings
User restrictions enable the security improvement as well as the prevention of inadvertent changes to, for example, measurement conditions.
Status Indicator with 3 LED Colors
Colored lights allow the user to confirm the status of operation from a distance. The user will also be alerted to unexpected problems right away.
Easy Replacement of Buret Head
Simply sliding toward the user, Buret Head can be removed together with the reagent bottow just with one hand. With multiple buret heads, the user can quickly manage different titrants simply by switching them.

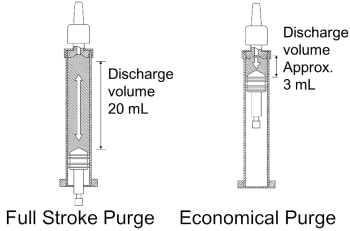

Economical Purge Function
Discharging/charging at the top end of the syringe is repeated. Reagents can be replaced automatically, which greatly reduces waste fluid. The number of economical purge cycles can be set from 1 to 99.

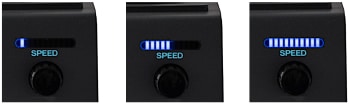

Forty Rotation Speeds Can Be Set
Rotation can be adjusted manually in fine increments shown by LED bars—it is easy to see and understand. (Four increments per each bar)
Specifications
COM-A19 Automatic Titrator
| Item | Specifications |
|---|---|
| Parallel measurement | Up to 2 titration stations are connectable. (with optional titration station (and stirrer)) |
| Titration methods | Potentiometric titration |
| Measuring range | pH: 0 to 14, mV: -2000 to +2000 mV |
| Titration mode | Learn titration, Inflection-point detection, Set-point detection, Set point/Inflection-point detection, Cross-point (F, B, V1, V2) detection, Neutralization values in petroleum products (Oil1, 2) Other functions: pH-Stat (1, 2), pH measurement, Dispensing, Calculation, pKa measurement |
| End-point detection mode | Auto-detection using a second derivative (with smoothing function), Set-point detection, Cross-point detection |
| Number of endpoints detected | Up to 5 end points with a Learn titration file or linked method files |
| Display | 8.4 inch color LCD touch panel |
| Displayed content | Titration conditions, Data per drip, Titration results, Titration curve, Differential curve, List of titration results, Statistics calculation results, Condition settings display, Real-time display of fluid temperature during titration (when thermistor electrode is connected) |
| Memory data capacity (Each titration station) |
Built-in memory: 100 data points USB flash memory: (≧256MB) Maximum capacity approx. 9,900 data points |
| Settings input method | Key touch input (English guide displayed) |
| Sample data | Sample No.: 2 digits, ID code: 16 alphanumeric characters |
| Master file | Titration execution files: 51 files |
| Conditions file | 51 files (method parameters, constant files, control mode files) |
| Number of linked condition file | 9 files (up to 5 files in case of titration files linkage) |
| Titration control mode file | Standard files: 51; Neutralization value files in petroleum products: 51; Manufacturer settings modes (0–11), Blank modes (12–19), User setting mode (20–50) |
| Constant file (settings parameter of concentration calculation constant) |
51 files K, L (constants), F (factors), M or N (molarity or normality), B (blank mL), S (sample size), T (temperature °C) |
| Sample files | 99 files (Sample No., ID code, Master file and Sample size) |
| Auto input function | Function to automatically set titration results to constant parameters (blank, factor, etc.) . Condition files for automatic input can be designated. |
| Calculation function | Concentration calculation, Statistics calculations, pH automatic compensation |
| Branching function | After measuring the potential prior to titration, branching into maximum 2 condition files |
| GLP-compliant function |
|
| Printer | Built-in thermal printer (Paper roll width: 58 mm) |
| External input⁄output | RS-232C: 1 port (For balance or computer connection), LAN: 1 port, USB flash memory stick: 1 port |
| Power supply | AC100-240 V±10 ％ 50/60 Hz 60 VA (MC-3000 only) A power cable is not included in this product. (*1) |
| Dimensions⁄weight | 235(W) × 400(D) × 250(H) mm ⁄ Approx. 6.5 kg (MC-3000 only) |
* 1 : The power inlet of this product complies with IEC60320 C14. Please prepare a power cable that can be connected to this power inlet.
COM-A19 Automatic Titrator
| Item | Specifications |
|---|---|
| Buret capacity | Standard: 20 mL transparent syringe (with UV light shield protective cover) Can be replaced with 5, 10, 50 mL buret head (optional) |
| Forming system | Vacuum forming |
| Wetted part material | PTFE, hard glass, ceramic (*1) |
| Connecting tubes | φ2 x φ3 PTFE tube (brown) |
| Reagent bottle size | 500 mL |
| Valve switching | Automatic switching by ceramic lapping |
| Discharge speed ⁄ Absorption speed | Full stroke: minimum 50-second (min. 25-sec. for discharge or absorption) Can be set from 50 to 250 seconds in 25-second increments (with a 20-mL syringe) |
| Minimum drip volume | 0.00125 mL (with 20-mL syringe) |
| Buret accuracy | Relative accuracy: ±0.1% or less (with full capacity discharge from 20-mL syringe at factory settings (new)) Repeat accuracy: 0.01 mL or less (with full capacity discharge from 20-mL syringe, n=6 standard deviation) |
| Buret attachment | Up to two B-3000 burets can be attached simultaneously |
| Measurement unit attachment | Only the S-3000 can be connected |
| Power supply | AC100-240 V±10 ％ 50/60 Hz 70 VA A power cable is not included in this product. (*2) |
| Dimensions ⁄ weight | 20(W) × 340(D) × 470(H) mm ⁄ Approx. 6.5 kg (*3) |
* 1 : Hydrogen fluoride cannot be used.
* 2 : The power inlet of this product complies with IEC60320 C14. Please prepare a power cable that can be connected to this power inlet.
* 3 : When measurement unit and burette head are attached.
K-3000T Stirrer
| Item | Specifications |
|---|---|
| Beaker size | Up to 500mL |
| Stirring system | Magnetic stirrer |
| Stirring bar | PTFE (φ8 x 30 mm): 1 included |
| Rotation speed setting | Adjustable Initial speed can be set on the main controller unit |
| Number of attachment to electrode holder | Electrodes: 2 Thermistor electrodes: 1 Buret tips: 3 |
| Power supply | DC12 V (supplied by titration station) |
| Display | 100(W) × 165(D) × 345(H) mm / Approx. 1.5 kg |
Options
- Titration Station TS-3000S-20
- Titration Station Drive TS-3000
- Buret Head H-3000-50K
- Buret Head H-3000-20
- Buret Head H-3000-10
- Buret Head H-3000-5
- Potentiometric Unit S-3000
- Buret B-3000-50
- Buret B-3000-20
- Buret B-3000-10
- Buret Drive B-3000
- Buret Head H-3000-50K
- Buret Head H-3000-20
- Buret Head H-3000-10
- Buret Head H-3000-5
- Stirrer K-3000T
