LaChromUltra II C18

LaChromUltra II C18

High durability and pressure resistance enable performance. The LachromUltra II C18 columns enable both ultrahigh-speed analysis and ultrahigh-resolution analysis.

The LaChromUltra II columns are packed with composed material comprised of organic-inorganic silica, providing improved physical and chemical durability over that of conventional silica gel particles.
To maximize the high-pressure performance inherent to UHPLC, a 250-mm-long column with 1.9-µm particles has been added to the product lineup.

Features

The physical and chemical durability of organic-inorganic silica is improved over that of conventional silica, acieving high-pressure tolerance. Based on the performance, a 250-mm-long column has been added to the product lineup.
The high-resolution columns with theoretical plate number 50,000 fully work in the application of relate- compound analysis, multicomponent analysis, and more.
Furthermore, by connecting 2 pieces of 250-mm columns, ultrahigh resolution can be achieved with theoretical plate number 100,000.

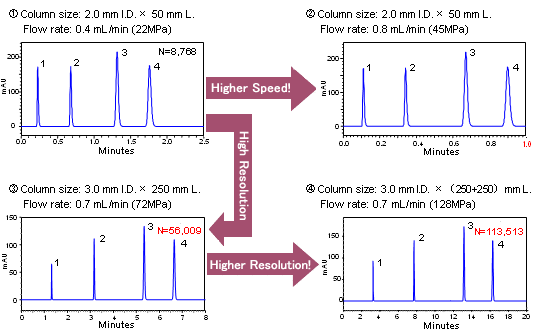

Example of application

-

Conditions:

Mobile Phase (1)(2)60% CH3CN
(3)(4)70% CH3CN
Column Temperature 40℃
Detection UV 270 nm
Injection Vol. (1)(2)1 µL
(3)(4)2 µL
Instrument

sample:

  1. Uracil
  2. Methylbenzoate
  3. Naphthalene
  4. Buthylbenzoate

Ordering Information

UHPLC Columns HITACHI LaChromUltra II Series

Product Name Particle Size (µm) Column Size (mm I.D. × mm L.) P/N
LaChromUltra II C18(1.9 µm)
Has the same properties as LaChrom II (3 µm,5 µm) but in different sizes. It is easy to interchange analysis methods between UHPLC and HPLC.
1.9 2 ×50 889-0901
2 ×100 889-0902
2 ×150 889-0903
3 ×50 889-0904
3 ×100 889-0905
3 ×150 889-0906
3 ×250 889-0907
4.6 ×250 889-0908

HPLC Columns HITACHI LaChrom IISeries

Product Name Particle Size (µm) Column Size (mm I.D. × mm L.) P/N
LaChrom II C18
Has the same properties as LaChromUltra II (1.9 µm) but in different sizes. It is easy to interchange analysis methods between UHPLC and HPLC.
3 4.6 ×100 889-0909
4.6 ×150 889-0910
5 4.6 ×150 889-0911
4.6 ×250 889-0912
