Data Input and Output Optional Software

Data Input and Output Optional Software

Data input and output optional software package for thermal analyzers automates the entry of measurement conditions with a barcode reader, and helps customers improve measurement workflow. As well as preventing human error during configuration of measurement conditions, management of analysis results data is made easier, leading to increased reliability during analysis for quality control and R&D.

Features

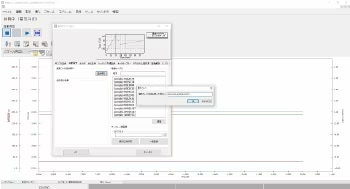

Automatic entry of measurement conditions

This feature allows sample name, data file name and measurement conditions to be automatically obtained from a sample's identifying information by scanning barcodes linked to each sample with a barcode reader.

Automatic entry of measurement conditions
Automatic entry of measurement conditions
Automatic entry of measurement conditions

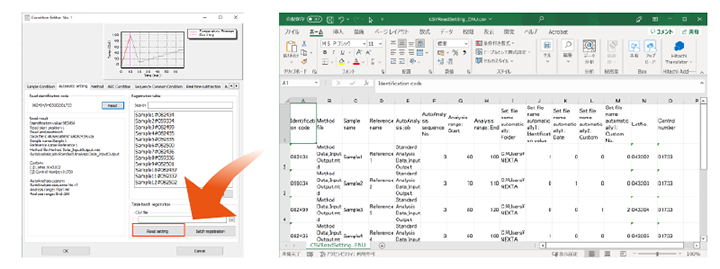

Mass Upload Template

The feature is useful for registering many identification codes when there are many types of measurement samples and measurement conditions. Entering information such as the sample name, method file name, sample lot number, etc., for each identification code in CSV file, and reading the CSV file with NEXTA software makes it easy to register up to 5000 codes information at once. It is also available when registering identifying information one by one.

Mass Upload Template

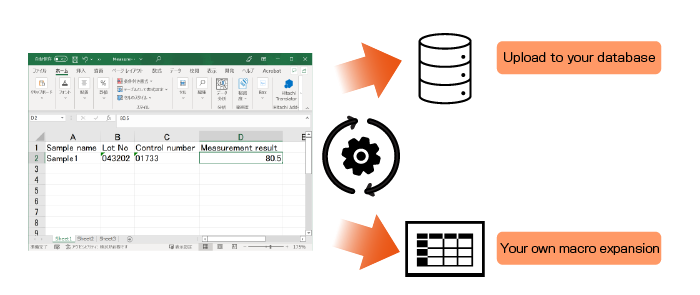

Data management support

This feature allows information such as test items, lot numbers and serial numbers to be exported together with thermal analysis results data. Data can be exported to CSV, Excel, and text formats, making internal management of analysis results data even easier and contributing to improved reliability during quality control.

Data management support

It is also effective in automating multiple sample measurements using an auto-sampler. Entering measurement order and sample number for the autosampler to a sequence table is also supported. The operational process from making measurement conditions to data management becomes more automated. Less manual work helps improve productivity of your operation.

* Note: Barcode reader is not included in the software package.
