Real View® Sample Observation Unit

Real View® Sample Observation Unit

This is an optional accessory that integrates with the instrument to observe the sample during thermal measurements. Images reveal changes in sample shape, size, color, and other properties. The images can be recorded and are automatically linked to the thermal data by time-stamp.

* "Real View"is a registered trademark of Hitachi High-Tech Science Corporation in the US, the EU, the UK, China, India, Turkey, Brazil and Japan.

Features

1. Real-Time Observation during Measurement

Changes in the sample status can be displayed in “real time.” The images are linked with the temperature and can be viewed just by clicking the data streams.

2. Image Data Analysis linked with Temperature and Signal

Stored image data can be displayed in either thumbnail or slide show format, linked with the temperature and signals.

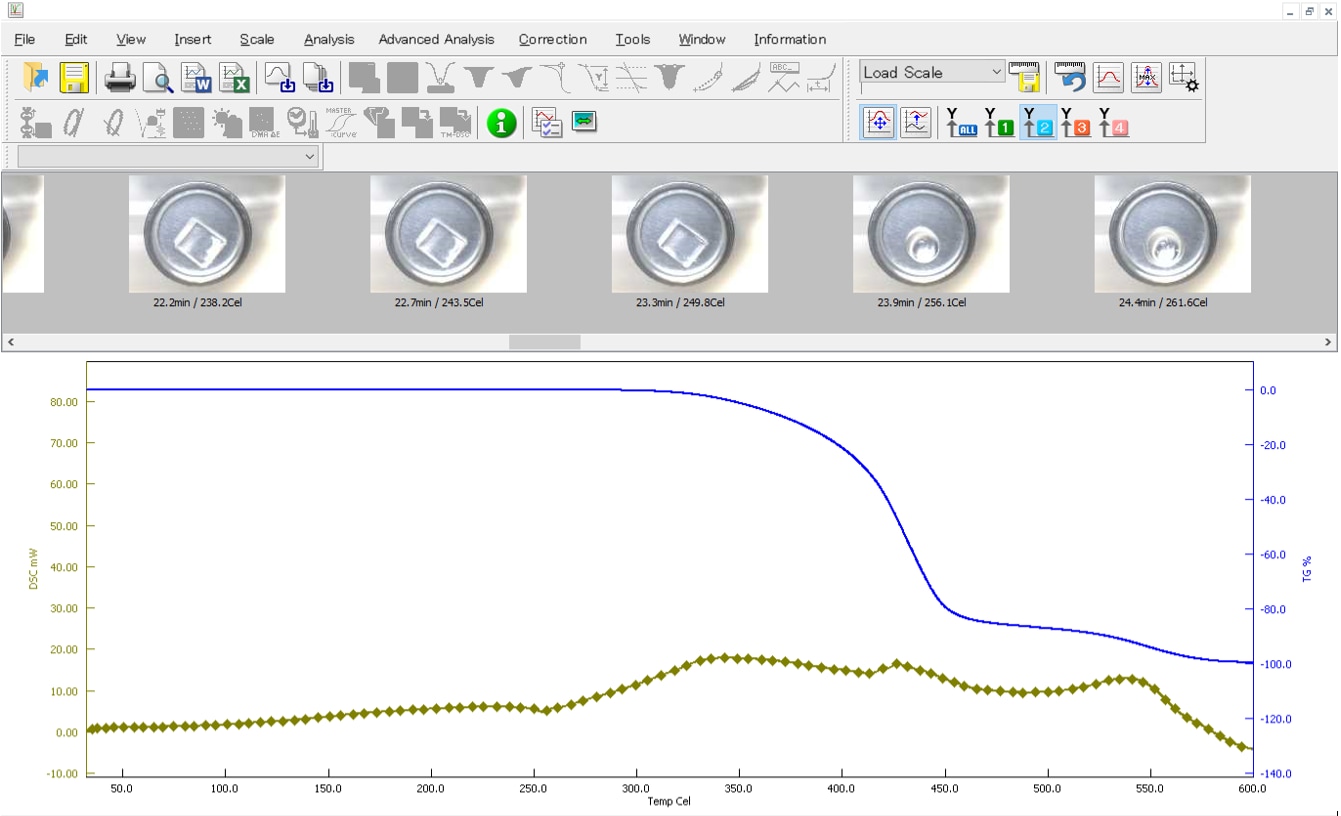

Thumbnails display

Thumbnail Images can be displayed. Linked images can be shown by clicking any point on the signal curve.

-

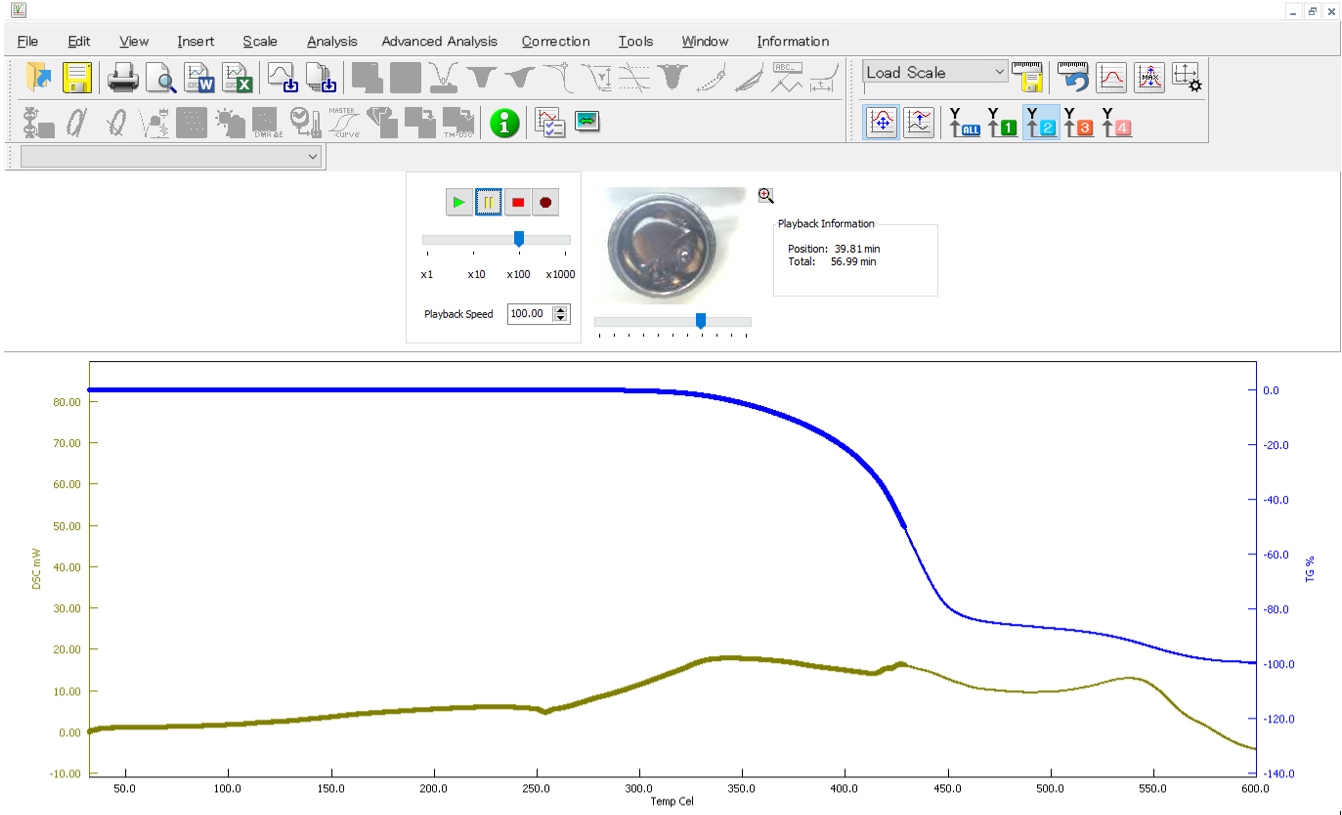

Slideshow display

The slide show feature shows the series of images as if they were a movie file. The signal data points change to correspond to the movie’s timeline.

-

3. Enhanced “measuring” function

  • Image editing

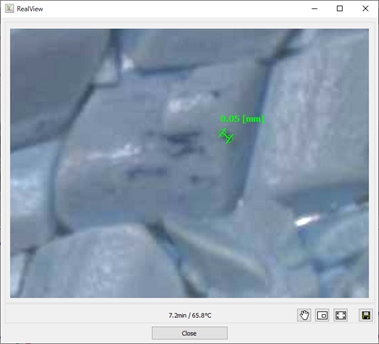

  • Dimension measurement
  • Digital zoom
デジタルズーム&測長機能

* • Color (RGB/CMYK/Lab) analysis

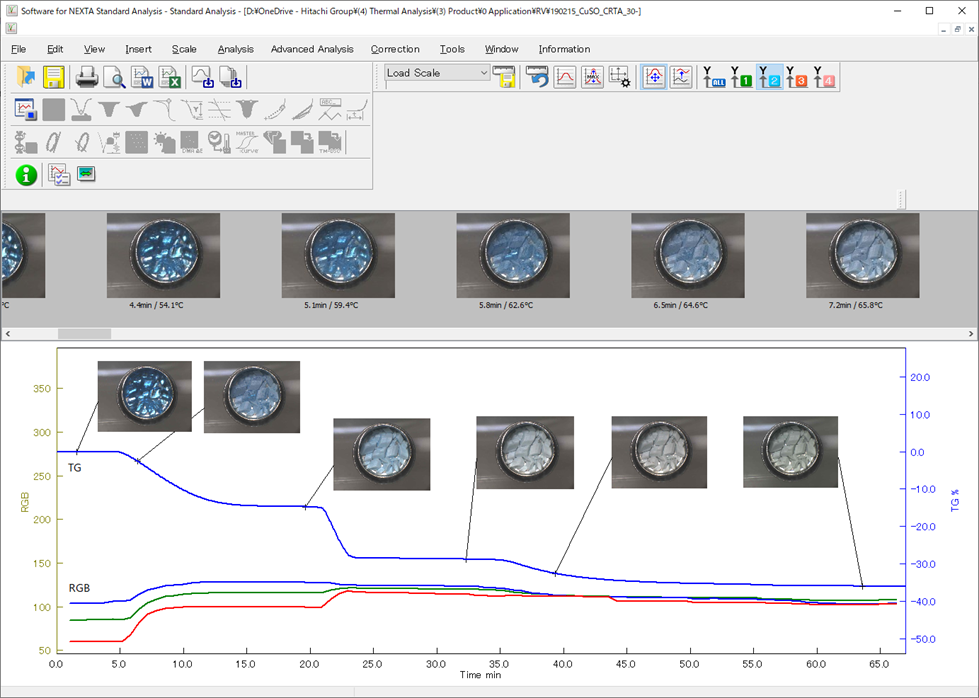

RGB analysis graph and images showing on TG curve

Specifications

Model RVDS0001 RVST0010 RV-1DMA
Unit DSC600、DSC200 STA200RV DMA7100

Data
