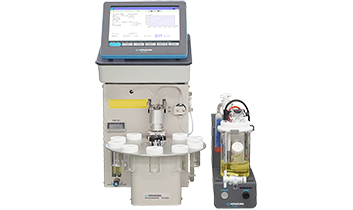

Automated Solid Evaporator EV-2010
Affordable continuous automatic measurement system for solids and powders (for 10 samples)
Create a system by combining it with a KF Titrator.
A series of operations such as sample container transfer, heating, and measurement are performed automatically.
Features
1. Automatic measurement
Multiple samples can be measured automatically for efficient moisture measurement.
2. Heating temperature (room temperature to 300℃)
The sample heating temperature can be set arbitrarily from room temperature to 300°C.
3.Measurement condition file
There are 50 measurement condition files, and optimal temperature settings can be registered for each sample.
4.Temperature increase can be set for each sample
Up to 3 steps of temperature increase can be set for each sample.
5.Easy-to-handle sample bottles
The container is straight from the bottom to the mouth, making it easy to take out the dissolved sample.
Specifications
For KF titrator, please refer to the specifications of the KF titrator to be combined.
| Moisture vaporization method | Ventilation heating vaporization method |
|---|---|
| Sample container | Hard glass Bottle, aluminum foil packing, PTFE lid |
| Number of sample containers | 10 samples |
| Sample amount (volume) | About 10 mL or less |
| Carrier gas | N2 gas (or dry air from an optional dry air pump) Flow rate : 30 to 300 mL / min (depending on setting) |
| Carrier gas Desiccant | Molecular sieves |
| Heater/Temperature control | Band heater, PID control method |
| Temperature range | From room temperature to 300 ℃, Up to 3 levels can be set |
| End position setting | Set stop-pin to end position |
| Post-measurement procedures | End buzzer |
| Power supply | AC 100 - 240 V 50/60 Hz About 150 V A power cable is not included in this product. (*1) |
| Dimensions / Weight | 260(W) x 600(D) x 280(H) mm / Approx. 11 kg |
*1
The power inlet of this product complies with IEC60320 C14.
Please prepare a power cable that can be connected to this power inlet.
Options
- dry air pump
