HIRANUMA Oil Evaporator EV-2000L

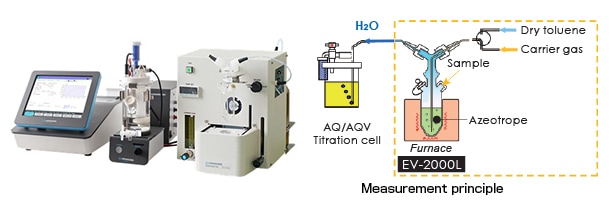

The EV-2000L Oil Evaporator utilizes azeotropic distillation.
It completely separates water from sample matrices, thus eliminating any side reactions with interfering substances. The EV-2000L can be used with all — Karl Fischer titrators, or any other manufacturer’s titrators.
Features
- Keeps the cell always clean!
- Compact cubic design
- Easy to use and simple maintenance
Specifications
| Item | Specifications |
|---|---|
| Evaporation method | Azeotropic distillation method |
| Heating temperature | Room temperature to 200 ˚C |
| Heater | Band heater |
| Evaporation chamber capacity | Max. 10 mL |
| Azeotropic solvent | Toluene / Xylene / n-Octane (5 to 10 mL per measurement) |
| Carrier gas | Nitrogen gas or dry air* *Optional dry air pump is required. Flow rate: 30-300 mL/min. Input pressure: 0.8 MPa or less Desiccant: Molecular sieves* |
| Power supply | AC100-240 V, 50/60 Hz, 150 VA |
| Dimensions / Weight | 220(W) × 370(D) × 265(H) mm / Approx. 7 kg |
* Molecular sieves required for drying carrier gas is not included in the instrument.
Options
-
Dry air pump
Compact, integrated air pump eliminates the need for nitrogen carrier gas.
Introducing the measurement example using moisture measurement equipment.
