The Future of Tabletop Microscopes is Here!

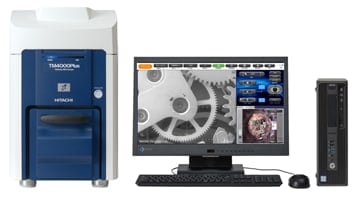

The TM4000 Series features innovation and cutting-edge technologies which redefine the capabilities of a tabletop microscope. This new generation of the long-standing Hitachi tabletop microscopes (TM) integrates ease of use, optimized imaging, and high-image quality, while maintaining the compact design of the well-established Hitachi TM Series products. Experience the new dimension of tabletop microscopes with the Hitachi TM4000 and TM4000Plus.

    S.I.navi

    Features

    Easy and intuitive operation for data acquisition, reporting, and everything in between

    • The TM4000 Series provides a solution for SEM users to easily obtain high- quality data and quickly generates reports enabling a very efficient workflow.
    • Accommodates sample sizes of up to 80 mm in diameter and 50 mm in thickness.
    • Environmentally friendly and efficient vacuum system allows short pump-down times and high sample throughput.
    • Sample insertion to data acquisition and report generation in just minutes!

    Camera Navi (option)

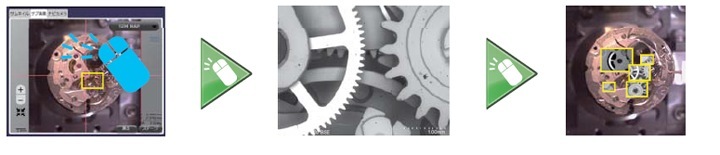

    • Optical images help navigate to the region of interest and supports an observation overlay with the MAP function.

    Report Creator

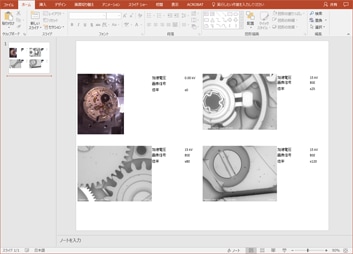

    • Select images and a template to generate customized reports quickly and efficiently.
      (Supported formats: Word®, Excel®, PowerPoint®)



    Cutting-edge electron optics for high-image resolution and quality

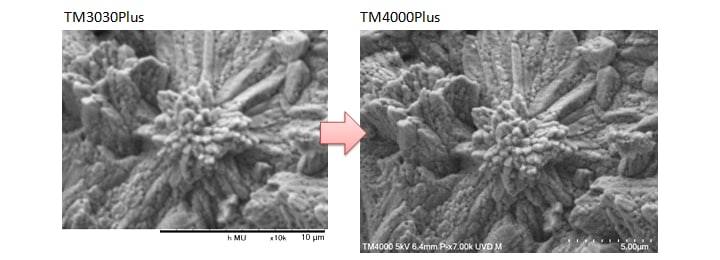

    Sample: cement 5 kV UVD
    Sample: cement 5 kV UVD

    Compact and efficient design allows installation almost anywhere

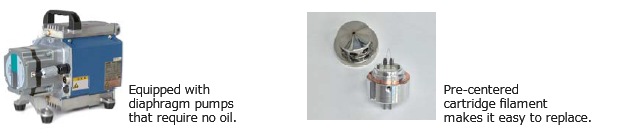

    Equipped with an oil-free vacuum pump and a replaceable cartridge filament for easy maintenance.

    Specifications

    ItemTM4000PlusTM4000
    Magnification ×10~×100,000 (Photographic magnification)
    ×25~×250,000 (Monitor display magnification)
    Accelerating voltage 5 kV, 10 kV, 15 kV
    Image signal Backscattered electrons (BSE)
    Secondary electrons (SE)
    Mix (Backscattered electrons + Secondary electrons)    		 Backscattered electrons (BSE)
    Vacuum mode BSE: Conductor/Standard/Charge-up reduction
    SE: Standard/Charge-up reduction Mix: Standard/Charge-up reduction    		 BSE: Standard/Charge-up reduction
    Image mode(BSE) COMPO/Shadow 1/Shadow 2/TOPO
    Sample stage traverse X: 40 mm Y: 35 mm
    Maximum sample size 80 mm (in diameter) , 50 mm (in thickness)
    Electron gun Pre-centered cartridge tungsten filament
    Signal detection system BSE: High-Sensitivity 4-segment BSE detector
    SE: High-Sensitivity Low-Vacuum SE detector    		 BSE: High-Sensitivity 4-segment BSE detector
    Auto image adjustment function Auto start, Auto focus, Auto brightness/contrast
    Save image size 2,560 × 1,920 pixels, 1,280 × 960 pixels, 640 × 480 pixels
    Image format BMP, TIFF, JPEG
    Data display Micron marker, micron value, magnification, date and time, image number and comments, WD (Working Distance), accelerating voltage, observation conditions, observation mode, image mode, detection signals
    Evacuation system
    (vacuum pump)    		 Turbo molecular pump: 67 L/s x 1 unit
    Diaphragm pump: 20 L/min
    Operation help functions Raster rotation, Magnification presets (3 steps), Image shift (±50 µm @WD 6.0 mm)
    Safety functions Over-current protection function, built-in ELCB
    Size / weight Main unit:
    330 (width) × 614 (depth) × 547 (height) mm, 52 kg (motorized stage)
    330 (width) × 617 (depth) × 547 (height) mm, 52 kg (munual stage)
    Diaphragm pump : 144(width) × 270 (depth) × 216 (height) mm

    Application Data

    The TM4000 Series gives users the freedom to optimize various operating conditions, including beam condition (accelerating voltage), acquired electron signal type, magnification, and more.

    Accelerating Voltage

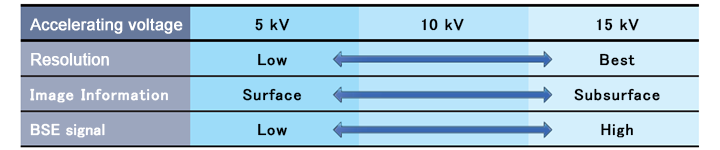

    • The TM4000 Series features three beam conditions to chose from depending on the information desired from the sample.

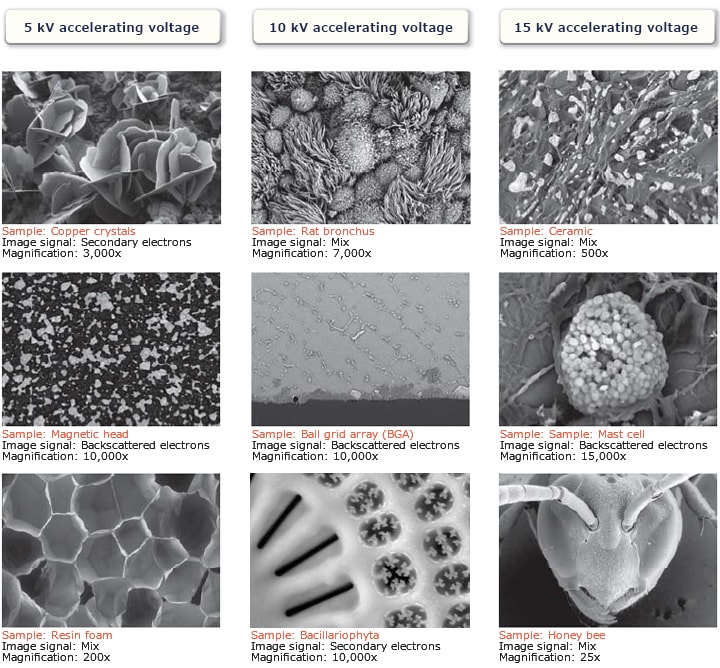

    • Differences in image appearance by changing accelerating voltage to 5 kV, 10 kV, and 15 kV are shown below.

    Optional accessories

    Energy Dispersive X-ray Spectrometer TM4000/TM4000Series

    TM Series Energy Dispersive X-ray Spectrometer: Quantax75

    (Manufactured for Hitachi High-Technologies corporation by Bruker Nano GmbH)

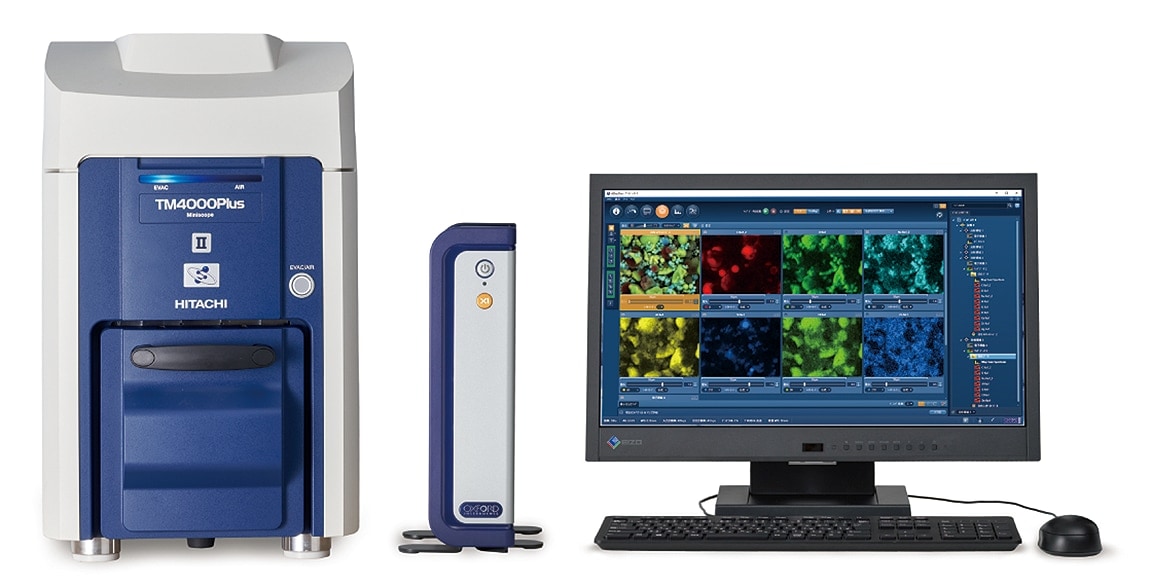

    TM Series Energy Dispersive X-Ray Spectrometers: AZtec Series

    (Manufactured for Hitachi High-Technologies Corporation by Oxford Instruments Analytical Ltd.)

    3D construction and Measurements

    The TM Series 3D visualization software Hitachi map 3D



    Technical magazine
    "SI NEWS"

    This journal addresses a wide range variety of research papers and useful application data using Hitachi science instruments.

    nanoart

    Photo collections of beauty of metals, minerals, organisms etc. reproduced by the electron microscope and finished more beautifully by computer graphic technology.
