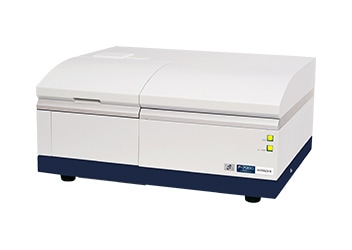

Fluorescence Spectrophotometer F-7000

Fluorescence Spectrophotometer F-7000

Compact system capable of performing many new functions such as sensitivity (S/N 800:RMS) and ultra high-speed (60,000 nm/min) at the highest level of its class.
The application of fluorophotometry has been expanded to various fields such as industrial materials, in areas such as organic electroluminescence and liquid crystals; environment-related areas, such as water quality analysis; pharmaceutical manufacturing, such as the synthesis and development of a fluorescence reagent; and to biotechnology-related areas, such as intracellular calcium concentration measurement.

Features

  • The highest sensitivity at S/N 800 (RMS) (S/N 250 Peak to Peak) in its class
  • The fastest ultra high-speed scan at 60,000 nm/min in its class
  • Compact design with a volume ratio of 2/3 and 30% reduced mass (weight) compared to F-4500
  • 3D time change measurement mode capable of following time changes at multiple wavelengths
  • Expanded measuring time range enabling measurement of long-lasting phosphorescence
  • Continuously variable voltage photomultiplier with a sixth order dynamic range important for the analysis of unknown samples
  • Expanded setting time of "time scan" capable of following changes 2.5 times longer than before
  • Software capable of addressing the FDA Part 11, which is becoming essential in pharmaceuticals
  • Report generator offered as optional software for customization in a free format after data processing
  • The potential of the new fluorescence analysis has expanded in a wide range of fields such as industrial material, environmental, pharmaceutical, and biotechnology fields

Specifications

ItemDescription
Sensitivity
(Raman light of water)
Noise:Background S/N 15,000 or above*1
Noise:Peak 800 or above*2
Minimum sample volume 0.6 mL (in use of standard 10 mm rectangular cell)
Photometric principle Monochromatic light monitoring ratio calculation
Light source 150 W xenon lamp, self-deozonating lamp house
Measuring wavelength range
(on both EX and EM)
200 to 750 nm, and zero-order light
(Expandable up to 900 nm with optional detector)
Wavelength scan speed 30, 60, 240, 1,200, 2,400, 12,000, 30,000, 60,000 nm/min
Data processing unit PC: Windows®
Printer Printer compatible with Windows®
Dimensions/weight Spectrophotometer: 620 (W) x 520 (D) x 300 (H) mm (excluding protrusions)/41 kg
Working temperature / humidity 15 to 35°C,45 to 80% (condensation not allowed, 70% or less at 35°C or higher)
Power consumption
(spectrophotometer)
AC100, 115, 220, 230, 240 V , 50/60 Hz, 380 VA
FL Solutions program Standard software

*1 :EX 350 nm, Slit 10 nm, Response 4 s

*2 :EX 350 nm, Slit 5 nm, Response 2 s

Functions

Item
3-dimensional measurement
Wavelength scan
3-dimensional scan measurement
Time scan measurement mode
Photometry mode
Others

Option

ItemParts No.Remarks
Flow cell unit for 55ul 250-0331 -
Flow cell unit for 180ul 250-0332 -
High sensitivity cell holder 5J0-0124 The cell is not included.
Sample sipper accessory 5J0-0123 -
Thermostatic cell holder 250-0330 Thermostatted water bath and cell are not included.
4-turret sample compartment 250-0339 The cell is not included.
8-turret sample compartment 250-0333 The cell is not included.
Low temperature measurement accessory 5J0-0112 -
Absorbance Cell holder 650-0165 Thermostatted water bath and cell are not included.
Thermostatic cell holder with stirrer 250-0346 The cell is not included.
Cell holder with constant temp control 5J0-0141/0142 The cell is not included.
Cell holder with programmable temp control 5J0-0143/0144 The cell is not included.
Micro sampling accessory 5J0-0111 The cell is not included.
Intracellular Cation measurement program 5J0-0308 -
Filter set 5J0-0151 -
Long life Xenon lamp 250-1600 -
Solid sample holder 650-0161 Performance guaranteed life: 500 hours
Photomultiplier R928F 650-1246 -
Sub standard light source 5J0-0135/0136 -
Polarization accessory for UV/VIS 650-0155 -
Polarization accessory for VIS 650-0156 -
Automatic Polarization accessory for UV/VIS 5J0-0137 -
Micro-plate Accessory 5J0-0139
Automatic 4-turret for F-7000 5J0-0140
Quantum Yield Measurement Unit 5J0-0148 (Standard equipped)
φ60 Integrating sphere, White plate, Cell, spectralon standard plate, Al2O3 powder, calculator software and user's manual
Low scatter micro cell 650-0171 Minimum sample volume approx. 0.2 mL
Report generator program 5J0-0306 -
