The Compact Plug-in Arrestors for Indoor

The Compact Plug-in Arrestors for Indoor

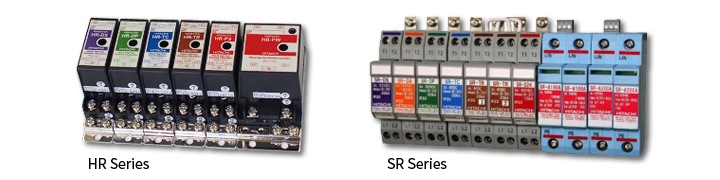

The compact plug-in indoor use arrestor series protects equipment by absorbing the induced lightning surge that appears in power or signal lines caused by lightning.

Features

  • Small plug-in structure.
  • The equipment is built so that the line does not open even if the body is pulled from the terminal, so it has excellent maintainability.
  • The SR Series complies with JIS standards for power: C5381-1 (2004), and for the signal: C5381-21 (2004).

Specification

The compact plug-in indoor use arrestor SR Series Product Specification-1
JIS compliant Power Supply Use: C5381-1(2004), Signal Use: C5381-21(2004)
Model nameSR-DSSR-DASR-DPSR-TC
Use Two-wire system transmitter circuit
4 - 20mA DC signal circuit
1 - 5V DC signal circuit
100V AD/DC control circuit, contact circuit Contact signal circuit
Pulse signal circuit
24V DC power supply circuit
Thermocouple circuit
mA / mV circuit
Maximum rating value
(Line)
Voltage 52V DC 150V AC
180V DC
50V DC 8V DC
Current 100mA DC 100mA DC 200mA DC 50mA DC
Voltage protection levelGround Below 350V Below 900V Below 620V Below 620V
Maximum discharge current
Between (L-E) 8/20µs
20kA (single line 10kA)
Internal resistance between the input terminal Around 5Ω
(single line)
Response speed 3ns
The compact plug-in indoor use arrestor SR Series Product Specification-2
JIS compliant Power Supply Use: C5381-1(2004), Signal Use: C5381-21(2004)
Model nameSR-TRSR-D24SR-A100ASR-A200A
Use RTD circuit
Potentiometer circuit
DC24V
Power circuit
AC/DC100V
Power circuit
AC200V
Power circuit
Maximum rating value
(Line)
Voltage 8V DC 50V DC 150V AC/
180V DC
255V AC
Current 2mA DC 1A DC - -
Voltage protection levelGround Below 620V Below 330V Below 700V Below 1.4kV
Maximum discharge current (between L-E) 8/20µs 10kA (3 lines) 10kA
(Single line 5kA)
80kA
(Single line 40kA)
Internal resistance between the input terminal
Response speed 3ns
