High-Speed Amino Acid Analyzer LA8080 AminoSAAYA
Developed with the user in mind, the AminoSAAYA offers easy and comfortable operability while maintaining the reliability and stability of Hitachi’s legacy amino acid analyzers.
Features

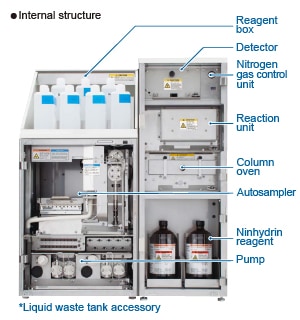

The Hitachi LA8080 AminoSAAYA combines a dedicated ion-exchange column with modules optimized for amino acid analysis.
Ergonomic Design

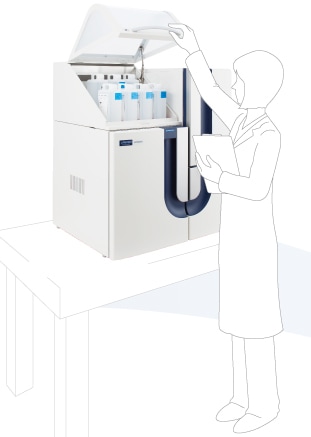

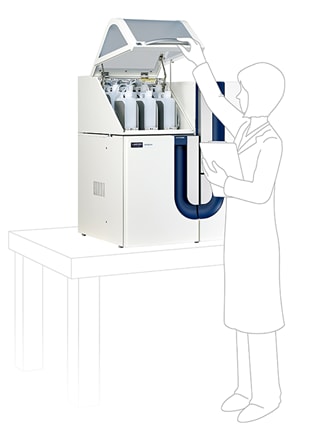

The height of the reagent setup unit was adjusted for better accessibility, making daily tasks such as reagent replacement, sample setup, and maintenance easier. Work performed in a half-sitting position has been minimized (the front door is also removable).
Space-saving compact design
A compact desktop-type system was realized, with the system setup area reduced by about 30%. The reliability and stability of the dedicated system remain unchanged.
Reliable post-column ninhydrin method
The analysis methods are inherited from previous models (L-8800/L-8900). The basic analytical conditions, columns (packing materials), and reagents that have been in use can be used without making any changes
Ready-to-use reagents, no refrigeration
Commercially available dedicated reagents can be used without preparation. The two ninhydrin solutions are mixed immediately before the derivatization reaction, so there is no need for refrigeration.
Flexible analysis methods
Select the analysis method (column, reagent, and analytical conditions): Protein Hydrolysates (PH) or Physiological Fluids (PF). Up to 6 buffer solutions and a column oven with time programming allow methods to be built for your purpose.
Data

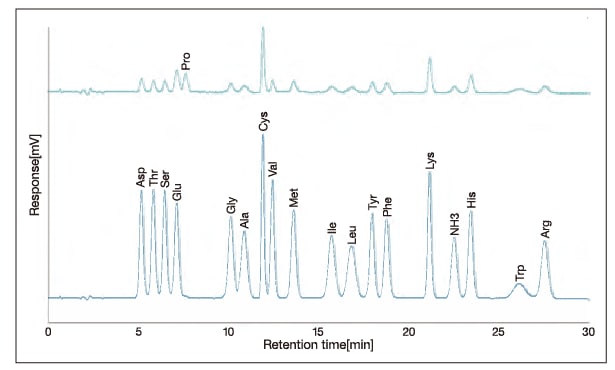

Analysis Example:
STANDARD ANALYSIS COLUMN (Protein Hydrolysate analysis method)
PHYSIOLOGICAL ANALYSIS COLUMN (Physiological Fluid analysis method)
Specifications
System performance (by protein hydrolysate analysis method)
| Analysis time | Approx. 30 minutes (Net) |
|---|---|
| Resolution | Thr-Ser、Gly-Ala、Ile-leu, more than 1.2 |
| Reproductively of the peak retention time | RSD 0.5% or less (Ala peak) RSD 0.3% or less (Arg peak) |
| Reproductively of the peak area | RSD 1.0% or less (Gly, His peak) |
| Detection limit | 2.5 pmol (S/N = 2 at Asp peak) |
System performance (by physiological fluid analysis method)
| Analysis time | Approx. 110 minutes (Net) |
|---|---|
| Resolution | Thr-Ser、Gly-Ala、Ile-leu, more than 1.2 |
| Reproductively of the peak retention time | RSD 0.5% or less (Ala peak) RSD 0.3% or less (Arg peak) |
| Reproductively of the peak area | RSD 1.5% or less (Gly, His peak) |
| Detection limit | 8pmol(S/N = 2 at Asp peak) |
Analyzer
| Column | Size: 4.6 mm ID × 60 mm *¹ |
|---|---|
| Resin: Hitachi custom ion exchange resin | |
| Pump | Flow rate setting range: 0.001-1.000 mL/min |
| Discharge pressure: 0 - 34 MPa | |
| Gradient elution method with 6 solutions | |
| Autosampler | Injection method: Direct injection method |
| Sample vial capacity: 1,500 µL | |
| No. of vials accommodated:120(with optional cooling unit installed: 100) | |
| Sample injection volume: 0.5 - 100 µL | |
| Column oven | System: Peltier |
| Temperature setting: 20 - 90 °C (in 1 °C steps) | |
| Reaction unit | System: Electronic heating |
| Temperature setting: 50 - 140 °C (in 1 °C steps) | |
| Detector | Spectrophotometer: Aberration-corrected |
| concave diffraction grating | |
| Wavelength: 570 nm, 440 nm |
Others
| Dimensions (excluding PC) | 700 (W) × 600 (D) × 850 (H) mm |
|---|---|
| Temperature range | 15 - 35 °C |
| Power supply | 100, 115, 220, 230, 240 V ± 10 V, 800 VA, 50 or 60 Hz |
| Nitrogen gas | Nitrogen gas source must be prepared. |
| Software | One of the following: 1. Agilent OpenLab CDS *² 2. Hitachi ChromAssist Data Station AAA *³ |
*1 Standard column
*2 Agilent OpenLab CDS supports for Title 21 CFR Part 11 and Annex 11 Compliance.
*3 Hitachi dedicated software for the LA8080.
Videos
Features of AminoSAAYA
Brief presentation of LA8080 AminoSAAYA: its compactness, ease of use and reliability.
The product story
Masahito Ito, Ph.D., an engineer of Optics Design Department, talks about features of LA8080.
Stories of Solving Social Issues
The Hitachi High-Tech Group aims to be a company that not only pursues economic value such as revenue and profit, but also contributes to solving social issues and provides social and environmental value through its business activities, including products and services.
Hitachi High-Tech's amino acid analyzers are continually evolving, based on technologies and expertise gained through the development of various analytical systems. By analyzing the building blocks of life with greater precision, we are contributing toward improving the well-being of people and society, and realizing a sustainable future.
Explore Hitachi LA8080 application examples in pharmaceuticals, food, beverages, and feed.
