HIRANUMA Automated Oil Evaporator System AQL-22320A

HIRANUMA Automated Oil Evaporator System AQL-22320A

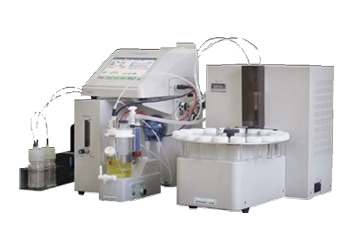

The AQL-22320A is an automated KF Titrator System that requires the analyst to load the samples into the glass vials and then place them on the sample tray of the system. The operator only needs to touch "Start" key once to begin the analyses.

* Chemical reagents are not included.

Features

  • Sample changer holds up to 20 vials.
  • Equipped with Automatic KF reagent exchanging function.
  • Wide temperature setting covers the full range of azeotropic points.
  • Reduces costs for KF reagent and waste disposal.
  • Can process large numbers of samples.

Specifications

Oil Evaporator LE-320 Standard Specifications
Item Specifications
Number of sample vials 20 positions
Volume of sample vial Max. 3 mL
Seal PTFE cap with PTFE septum
Carrier gas Nitrogen gas
Carrier gas flow rate 50-300 mL/min
Carrier gas desiccant Molecular sieves*
Heating temperature Room temperature to 200 °C
Heater Band heater, PID control
Power supply AC100-240 V, 50/60 Hz, 150 VA
Dimensions / Weight Sample changer + heater unit: 350(W) × 510(D) × 390(H) mm Approx.19 kg
Valve unit: 275(W) × 440(D) × 280(H) mm, Approx. 9 kg

* Molecular sieves required for drying carrier gas is not included in the instrument.
