Automatic Analyzer 3500
Changing the workflow in two lights
Since its launch of the first Model 400 in 1970, Hitachi has continued the development of technologies to support clinical laboratories. With succession of such technologies, the newly developed measurement technology of "Scattered Light Intensity analysis" provides the advanced Hitachi Automatic Analyzer 3500.
The Hitachi Automatic Analyzer 3500 contains a new technology to simultaneously perform scattered light intensity analysis to measure low-concentration and absorbance analysis to measure a wide range. This expands the range of testing in a single measurement.
Technology that enhances reliability of measurement result and various functions are equipped in a layout designed for easier use. Two measurement technologies will contribute to the efficient work flow and the future of medical care.
This page contains product information intended for the Japanese market.
Some images or details may include Japanese text. Due to medical device regulations, availability may vary by region. Specifications are subject to change without notice.
This page is intended for healthcare professionals
Countries of sale：
Japan：自動分析装置 3500
China：全自动特定蛋白生化分析仪 日立3500
Korea：자동 분석 장치 3500
Taiwan：全自動生化分析系統 日立3500
Progress based on extensive achievements
The Hitachi Automatic Analyzer 3500 takes laboratory technology a step further, integrating a wide range of functions and advanced optical innovations help for various workflows of laboratories.
Clinical chemistry analyzer
The 3500 inherits the user-friendly design of the 7180 model.

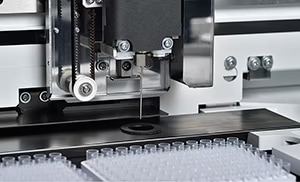

It also introduces a new sampling mechanism that enhances dispensing precision.
As the new standard in automated clinical chemistry analyzer, the 3500 is ready to meet laboratory's needs.
Multi-function automatic analyzer
The 3500 is a multi-function automatic analyzer that can perform clinical chemistry and immunoassays (BNP, etc.), blood coagulation analysis (PT, APTT, Fbg), HbA1c, and ISE.
The 3500 will support not only nighttime and weekend operation, but also emergency testing.
Expanding future

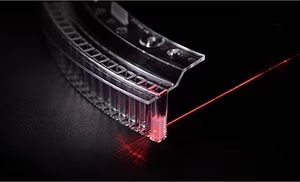

Scattered light intensity photometer enables to measure low-concentration ranges with higher sensitivity, ensuring highly reliable test results.
In addition, the 3500 can measure conventional absorbance photometry and scattered-light photometry together, covering wide analytical range.
Abscatter® , a combination of Absorbance and Scattering, will expand a future of laboratory testing.
* Abscatter is a coined word combining absorbance and scattering, and is a registered trademark of Hitachi High-Tech Corporation in Japan, China, and Taiwan.
*
The Abscatter® technology is supported by the following representative patents:
Patent No. 5613298, Patent No. 6581726, Patent No. 6812577, among others
Patent information is correct as of July 2021.
Specifications
| Item | Specifications | |
|---|---|---|
| Throughput | Absorbance tests | Up to 800 tests/hour |
| Scattered light intensity tests | Up to 800 tests/hour | |
| ISE | Up to 600 tests/hour | |
| HbA1c | Up to 200 tests/hour | |
| Coagulation time analysis | Up to 150 tests/hour (PT only), 110 tests/hour (PT, APTT, Fbg) | |
| Number of sample containers on system | 110 positions | |
| Sample loading method | Turntable | |
| Volume of sample pipetting | Absorbance tests/ Scattered- light intensity tests/ HbA1c | 1.5 to 35.0 μL (in 0.1 μL steps) |
| Coagulation time analysis | 1.5 to 53.0 μL (in 0.1 μL steps) | |
| Volume of reaction mixture | Absorbance tests | 100 to 300 μL |
| Scattered light | 200 to 300 μL | |
| Coagulation time analysis | 75 to 110 μL | |
| Volume of reagent pipetting | Absorbance tests/ Scattered light -intensity tests/ HbA1c | 20 to 270 μL (in 1 μL steps) |
| Coagulation time analysis | 25 to 75 μL (in 1 μL steps) | |
| Number of reagent bottles on system | 90 reagents | |
| Stirring | Stirring paddle | |
| Instrument dimensions | 1,960(W) × 840(D) × 1,240(H) mm*1 | |
| Weight | Approx. 500 kg | |
*1 Excluding the control unit(CU)
* The printer is not included in the standard system configuration.

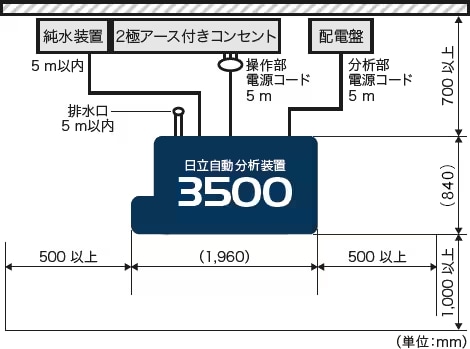

Floor layout Example
Product name: Hitachi Automatic Analyzer 3500
Marketing notification number: 13B1X10436000042
Japanese Medical Device Nomenclature (JMDN): Discrete multi-test simultaneous analysis system
General medical device (classified under specific maintenance management medical device and installation controlled medical device)
* Specific maintenance management medical device, as defined under the “Act on Securing Quality, Efficacy and Safety of Products Including Pharmaceuticals and Medical Devices,” must be purchased from licensed medical device distributors or rental providers.
