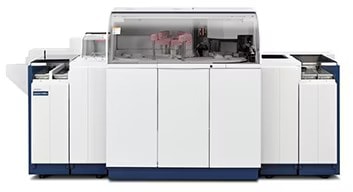

Automatic Analyzer LABOSPECT 008 α
Enhance operational efficiency in laboratories.
Due to factors such as population aging, the number of samples has been steadily increasing, leading to a growing demand for efficient processing of each sample within limited timeframes.
In addition to previous innovations such as reduced sample volume and faster processing time, LABOSPECT 008 α boosts operational efficiency by minimizing operator workload through its high throughput and streamlined operation.
This page contains product information intended for the Japanese market.
Some images or details may include Japanese text. Due to medical device regulations, availability may vary by region. Specifications are subject to change without notice.
This page is intended for healthcare professionals
Countries of sale：
Japan：自動分析装置 LABOSPECT 008 α
China：全自动生化分析仪 日立LABOSPECT 008 α
Korea：자동 분석 장치 LABOSPECT 008 α
Taiwan：全自動生化分析儀 日立LABOSPECT 008 α
Features
Report measurement results quickly
LABOSPECT 008 α has a high-speed processing capacity of up to for 2,000 tests per hour on a module, and achieves a throughput of maximum 8,000 tests per hour by combining modules.
In addition, each module can be operated independently, which is flexible.
By improving the module mask function, it is possible to remove the sample probe clot without stopping the analysis.
Non-contact stirring eliminates contamination by the stirring paddle and prevent the decrease in throughput.
User-friendly interface design
User interface has been redesigned to prioritize enhanced usability and intuitive operation.
This design ensures high screen responsiveness while also incorporating a wide range of customer requirements wherever feasible.
Reduce minimum sample volume through enhanced analytical technologies
LABOSPECT 008 α has micro pipetting technologies (minimum sample volume 1.2 μL and minimum reaction solution volume 80 μL).
These reduce not only the burden on the patient but also the running cost.
Enable you to reduce the burden of patient by specifying the measurement order of tests for samples measured using a microcup.

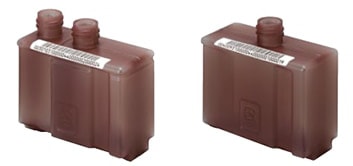

Dedicated reagent bottle for LABOSPECT series
The bottle combining reagent 1 and reagent 2 enables smooth replacement of reagents.
The photo shows an example of a bottle for the LABOSPECT series. Actual products may differ depending on the reagent manufacturer (Reagent manufactures in partnership).
Specifications
1-module configuration
| Item | Specifications | |
|---|---|---|
| Throughput | Photometric tests | Max. 2,000 tests / hour |
| ISE | Max. 900 tests / hour *1 | |
| Number of sample containers on system | 300 positions | |
| Sample loading method | Five position sample rack | |
| Sample volume | 1.2 to 35.0 μL (in 0.1 μL steps) | |
| Reagent pipetting volume | 5 to 180 μL (in 1 μL steps) | |
| Reaction solution volume (required for photometry) | 80 to 250 μL | |
| Number of loadable reagents (including detergent bottle positions) | 70 positions | |
| Stirring | Non-contact method (Ultrasonic wave stirring) | |
| Instrument dimensions (width, depth and height) | 2,890 × Approx. 1,200 × Approx. 1,350 mm *2 | |
| Weight | Approx. 980 kg *2 | |
*1 Throughput per unit. The system can accommodate a maximum of two units.
*2 Excluding the control unit(CU).
| 1-module configuration (Type 1) | 2-module configuration (Type 2) | 3-module configuration (Type 3) | 4-module configuration (Type 4) | |
|---|---|---|---|---|
| Throughput (tests/h) | Max. 2,000 | Max. 4,000 | Max. 6,000 | Max. 8,000 |
| Number of analysis tests*1 | 70 | 140 | 200 | 200 |
| Instrument dimensions (width, depth and height)*2 |
Approx. 2,890 mm × Approx. 1,200 mm × Approx. 1,350 mm |
Approx. 4,090 mm × Approx. 1,200 mm × Approx. 1,350 mm |
Approx. 5,290 mm × Approx. 1,200 mm × Approx. 1,350 mm |
Approx. 6,490 mm × Approx. 1,200 mm × Approx. 1,350 mm |
| Weight*2 | Approx. 980 kg | Approx. 1,550 kg | Approx. 2,120 kg | Approx. 2,690 kg |
*1 In a system equipped with an electrolyte analysis unit, three tests are added to the maximum number of simultaneous tests.
*2 Excluding the control unit(CU).
Floor layout Example
*1 純水供給装置は本体に含まれません。別途ご購入が必要です。
Optional Unit
- Electrolyte analyzer
- Handheld barcode reader
- Reaction curve approximation analysis tool MiRuDa
Product name: LABOSPECT 008 α Hitachi Automatic Analyzer
Marketing notification number: 13B1X10436000041
Japanese Medical Device Nomenclature (JMDN): Discrete multi-test simultaneous analysis system
General medical device (classified under specific maintenance management medical device and installation controlled medical device)
* Specific maintenance management medical device, as defined under the “Act on Securing Quality, Efficacy and Safety of Products Including Pharmaceuticals and Medical Devices,” must be purchased from licensed medical device distributors or rental providers.
