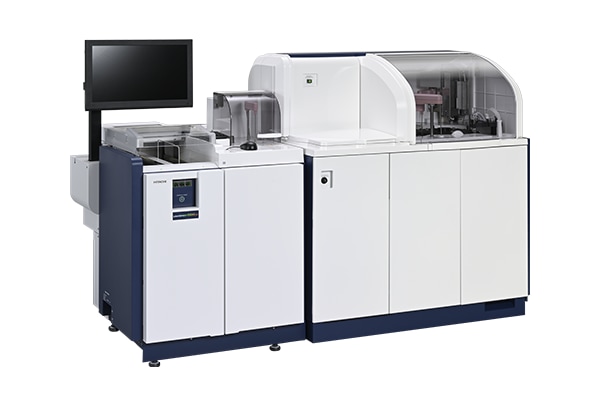

Automatic Analyzer LABOSPECT 006 α
Empowering new work practice in laboratories
As healthcare workplaces undergo reform, laboratories are expected to deliver high-quality services while achieving greater operational efficiency.
LABOSPECT 006α builds upon accumulated technological expertise along with feedback from customers.
It is designed to streamline pre-measurement tasks, minimize maintenance efforts, and improve overall usability.
Hitachi High-Tech is committed to driving innovation in laboratory work practices through LABOSPECT 006 α
This page contains product information intended for the Japanese market.
Some images or details may include Japanese text. Due to medical device regulations, availability may vary by region. Specifications are subject to change without notice.
This page is intended for healthcare professionals
Countries of sale：
Japan：自動分析装置 LABOSPECT 006 α
Features

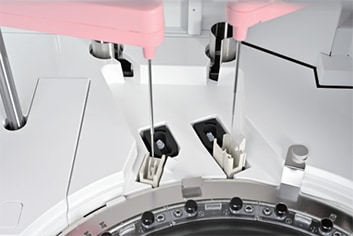

Streamlined daily maintenance
Outfitted with a newly developed probe cleaning mechanism.
Automated daily probe cleaning with heated detergent minimizes routine maintenance effort.

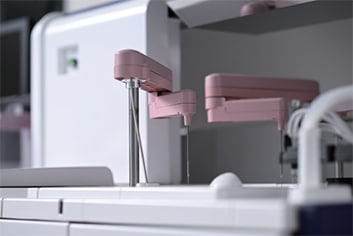

Optimizing preparation steps before analysis
Blank calibration for photometric assays is performed automatically as part of the daily maintenance routine.
* Pure water dispensed from the sample probe is used as the calibration sample.
Minimized effort for detergent bottle replacement
Enables seamless operation by allowing multiple detergent bottles and automatic switchover.

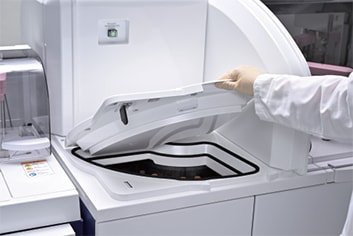

Shorter reagent preparation time
This system features a reagent replacement scheduling function that ensures uninterrupted operation when reagents run out.
* This function allows reagent replacement during a temporary pause in sample reception, enabling measurements to resume immediately without the need for initialization procedures.

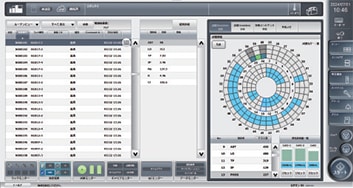

User-friendly interface design
For greater usability, the system features a wide-format display.
Essential information, including measurement status and reagent level, can be monitored in real time on a single screen.
Systems designed for high-quality testing
Identification of outlier data via reaction curve comparison.
Tracking alarm and instrument performance status
Cloud based platform LABOSPECT PlaNet
Specifications
| Item | Specifications |
|---|---|
| Method | Discrete-type multi-test simultaneous analysis system |
| Throughput | Photometric tests: Up to 1,000 tests/hour ISE: Up to 900 tests/hour HbA1c(Optional): Up to 500 tests/hour |
| Number of test items registered for analyses | 134 items max. (120 photometric tests, 3 ISE tests, 8 calculated tests, 3 serum indexes) |
| Quality control | Realtime QC (twin plot method), Individual QC and Cumulative QC |
| Types of Quality control samples | Up to 100 types |
| Rerun functions | Automatic rerun, Manual rerun |
| Reports | Analytical results (monitor form), Reaction monitor, Worksheets, Calibration trace, etc. |
| Maximum number of data record storable | Sample data (routine, STAT, control): 12,000 samples Reaction monitor data (routine, STAT, control): Saves all measurement results. |
| Sample container | Hitachi standard sample cup, Hitachi micro-sample cup, Sample tube(φ16 × 75, φ16 × 100, φ13 × 75, φ13 × 100 mm) *1 |
| Number of loadable samples | Five position sample rack, up to 150 samples loadable simultaneously |
| Sample volume | 1.0 to 35.0 μL (in 0.1 μL steps) |
| Reagent pipetting volume | 15 to 180 μL (in 1 μL steps) |
| Reaction solution volume | 75 to 185 μL (required for photometry) |
| Reaction cuvettes | Plastic, Semi-disposable |
| Control unit display | 21.5" LCD touch panel |
| Instrument dimensions (width, depth and height)*2・Weight | 2,120 × 1,140 × 1,350 mm, Approx. 700 kg |
*1 Please note that racks designed for φ16 and φ13 sample tubes require a separate purchase.
*2 Excluding the control unit(CU)
※ The printer is not included in the standard system configuration. Please note that a separate installation space is required. For further details, kindly contact your sales representative.

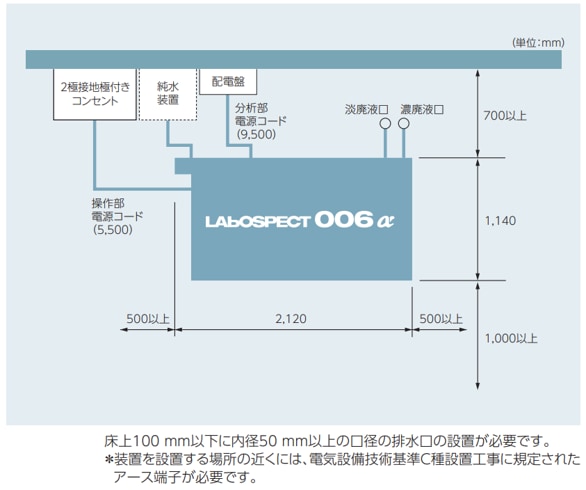

Floor layout Example
Product name: LABOSPECT 006 α Hitachi Automatic Analyzer
Marketing notification number: 13B1X10436000043
Japanese Medical Device Nomenclature (JMDN): Discrete multi-test simultaneous analysis system
General medical device (classified under specific maintenance management medical device and installation controlled medical device)
This page contains product information intended for the Japanese market.
