Analytical Services with Scanning Electron Microscopy (SEM)
Hitachi High-Tech America has a state-of-the art microscopy lab in Hillsboro, Oregon. Using innovative Scanning Electron Microscopes (SEM), dedicated equipment and a staff of full-time, industry-experienced engineers work on samples for various applications including but not limited to:

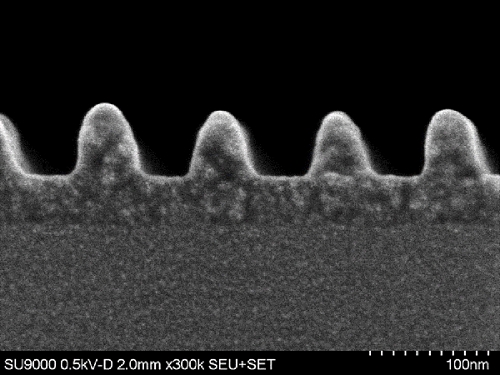

- Semiconductor device inspection
- Failure analysis and quality control
- Nanomaterials and coatings
- Geology and mineralogy
- Biomaterials and life sciences

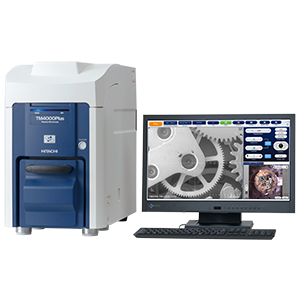

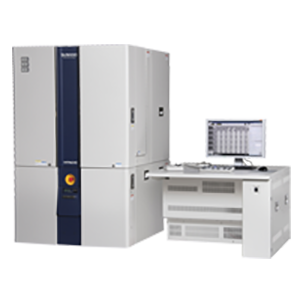

Available Instruments
Scanning Electron Microscopy (SEM)

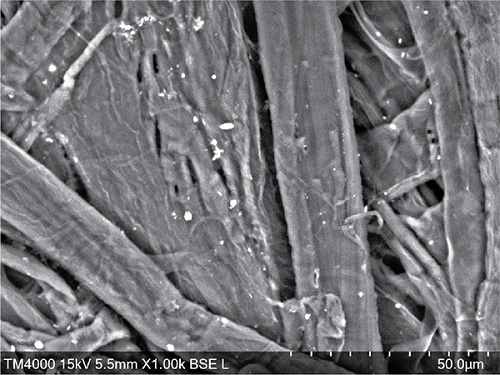

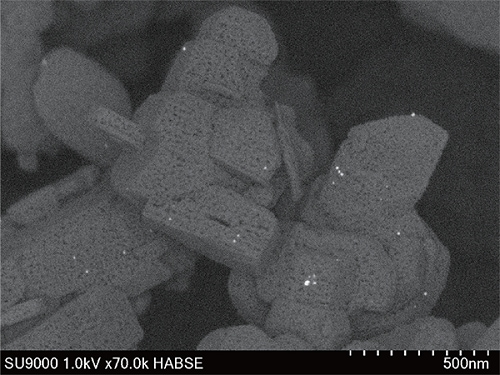

- High-Resolution Imaging: Capture ultra-high-resolution images to visualize surface morphology, texture, and structure at the micron and sub-micron scale.
- Elemental Analysis: Using Energy-Dispersive X-ray Spectroscopy (EDX), we can provide qualitative elemental analysis, helping you understand material composition.
- Accelerated Failure Analysis: SEM is ideal for investigating microfractures, corrosion, and other defects that can impact the performance and reliability of your materials.
Applications
- Semiconductor device inspection
- Failure analysis and quality control
- Nanomaterials and coatings
- Geology and mineralogy
- Biomaterials and life sciences
