Phase Mode (PM)

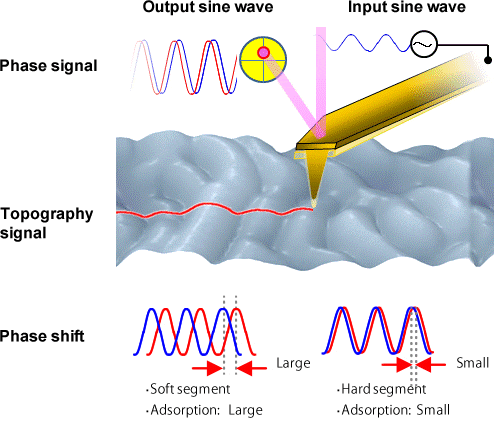

The DFM measurement detects phase lag in oscillation of the cantilever depending on the size of adsorptive power or hardness and softness, and observes differences in physical properties of the sample surface.


Animation of Phase Mode: Microphase separation

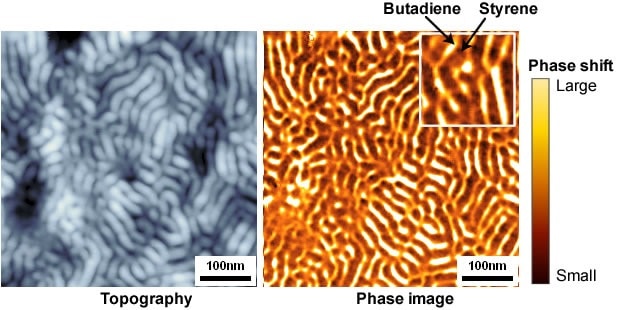

Styrene‐butadiene‐styrene block copolymer

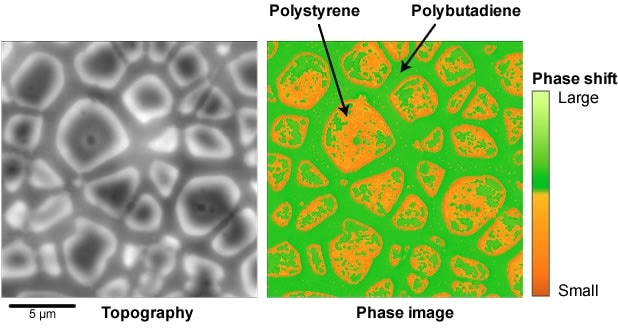

Blended polymer; Polystyrene / Polybutadiene

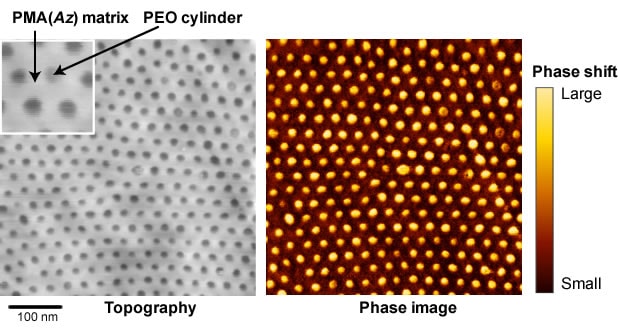

Amphiphilic di‐block copolymers; PEOm‐b‐PMA(Az) n

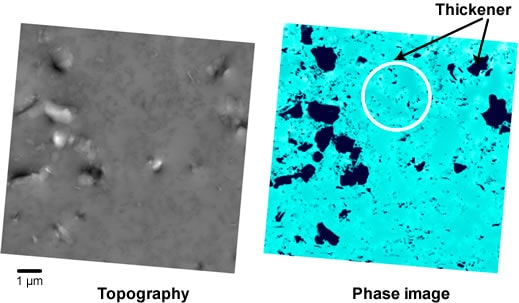

Grease with thickener
